Metal thickness gauge QuintSonic 7

glasscoatingplastic

Product overview
QuintSonic 7 is an ultrasonic coating thickness gauge that established new standards for non‑destructive measurement of polymer and metal coatings. As the first gauge integrating a digital ultrasonic sensor, it evaluates up to five individual coatings on metallic and non‑metallic substrates and offers reproducible results, simple calibration and a graphic A‑screen. The model has been succeeded by QuintSonic T.

Applications

• Non‑destructive measurement of varnish, plastics, glass, enamel and other coatings on wood, plastics, glass, metal and ceramics
• Measurement of metal coatings on plastics, ceramics and wood
• Measurement of up to 5 layers in a single operation
• Also suitable for wall/thickness measurement of substrates

Measuring principle

• Ultrasonic reflection (DIN EN ISO 2808, method 10) — pulse run‑time

Key features

• Sensor‑integrated digital 32‑bit signal processing (SIDSP®) for fast, consistent evaluation
• Over 40 measurements per minute (approx. 1 s cycle time)
• Small 5 mm measuring area for small or curved parts
• Graphic display with individual coating presentation, zoomable A‑screen and menu guidance
• High accuracy and repeatability

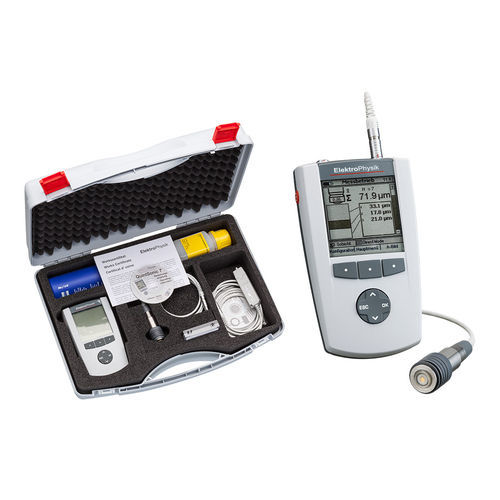

Scope of supply

• QuintSonic 7 basic unit
• Ultrasonic sensor with 1 m sensor cable
• USB adapter cable
• QSoft 7 Basic Edition on CD
• Operating manual German/English on CD
• 1 bottle coupling gel, 100 ml
• 4 x AA / LR06 batteries
• Plastic carrying case

Technical data (selection)
Measuring principle: Ultrasonic pulse run‑time method
Measuring ranges / Resolution / Accuracy: 1) 356 µm · 0.25 µm · 0.25 µm; 2) 890 µm · 0.5 µm · 0.5 µm; 3) 1,900 µm · 1 µm · 1 µm; 4) 3,900 µm · 2 µm · 2 µm; 5) 7,500 µm · 4 µm · 4 µm (reference ultrasonic velocity 2,375 m/s)
Minimum layer thickness: approx. 10 µm (depends on sound velocity)
Number of layers: up to 5 layers in one operation
Measurement cycle time: approx. 1 s (≈40 measurements/min)
Measuring area: 5 mm Ø · Contact area: 10 mm Ø
Memory: up to 250,000 measurements · Test series: 300
Interfaces: IrDA® 1.0, USB, optional RS‑232 via adapter
Operating temperature: 5 °C – 50 °C · Storage: -10 °C – 50 °C
Power supply: 4 x AA / LR06 or external 90–240 V AC
Dimensions: Gauge 153 × 89 × 32 mm (310 g) · Sensor Ø 25 × 60 mm (80 g)
