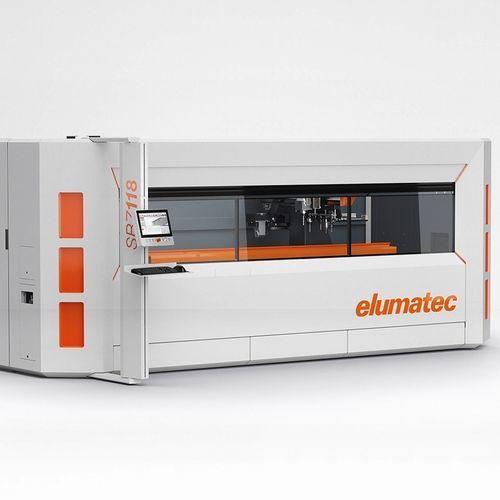

3/5-axis machining center SBZ 118

3-axishorizontalfor steel

Overview
The SBZ 118 is a compact 3-axis profile machining centre with optional 5-sided capability, engineered for economical CNC machining of aluminium, PVC and thin-walled steel profiles. It features an inclined-bed design, an on-board 5-position tool changer (without tools) and eluCloud readiness for Industry 4.0. Standard machining length: 3,000 mm.

Key benefits

• Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
• All operations (routing, drilling, notching, tapping) performed with the profile stationary to protect profile surfaces
• Intelligent control technology and dynamic servo drives for improved machining quality and energy efficiency
• Fast positioning of the machining unit up to 60 m/min on X axis
• Tapping without compensation chuck
• Automatic clamp recognition and clamp positioning to avoid collisions
• Automatic on-board 5-position tool changer (without tools)
• 15.6" panel PC with i3 processor and UPS included

Machine configuration (standard)

• Air-cooled 5 kW S1 routing spindle (HSK-F63)
• Protective cabin with side service door
• Four horizontal pneumatic material clamps; material stop on the left
• Minimum-volume lubrication system and high-performance cutting fluid
• State-of-the-art 3-axis controller, Windows-based operation and simple program entry with eluCam

Options

• 1 or 2 optional on-board tool changers for rotating angle heads (for 5-sided machining)
• HSK-F63 rotating angle head for two tools
• Tools and tool holders with process data; barcode scanner
• Length measurement on both sides; double clamping and additional clamps (expandable up to 6)
• Panel PC upgrades: 18.5" (i5) or 21.6" (i7)
• Green Line cooling unit for the control cabinet; CE standard, UL optional

Additional product details

• On-board 5-fold tool changer (without tools) and optional angle-head changers (up to two)
• Inclined-bed technology for improved ergonomics and chip evacuation
• Side service door and new front visor for faster, safer setup and maintenance
• eluCloud ready for remote monitoring and online maintenance

Technical specifications

• Layout (approx.): Total length (A): 5,520 mm; Depth without control panel (B): 1,955 mm; Total depth with control panel (C): ~3,025 mm; Height: ~2,490 mm; Weight: ~3,220 kg
• Axis strokes: X = 3,595 mm; Y = 945 mm; Z = 374 mm
• Positioning accuracy (all axes): ±0.1 mm
• Positioning speed: X = 60 m/min; Y = 30 m/min; Z = 30 m/min
• Axis acceleration (all axes): 2.5 m/s²
• Electrospindle: Max power (S1) 5 kW; Max speed 24,000 rpm; Toolholder cone HSK 63F
• Automatic tool magazine: Max tools 5; Max disc cutter Ø 100 mm; Max end mill Ø 16 mm; Max tool length 185 mm; Max drill Ø 10 mm
• Machining faces: Direct tool (top) 1 face; With angular head (front/back, ends) 2 + 2 faces
• Work area (mm): A: 185; B: 50 / 80; X1: 50 / 80; Y1: 3,200; Z1: 230; X2: 3,000; Y2: 175; Z2: 210
• Workpiece locking: Autonomous clamp positioning; standard clamps: 4 (max 6)
• Included safety/protection and lubrication: Integral protection booth; minimal oil diffusion lubrication system
