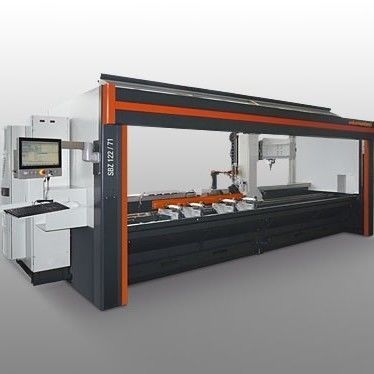

3-axis CNC machining center SBZ 122/71horizontalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Machined material
- for steel, for aluminum, for PVC
- Spindle mount
- HSK F63
- Number of tool stations
- 16 tools
- Associated functions
- milling, drilling, tapping
- Applications
- for aluminum profiles
- Other characteristics
- high-performance, with automatic tool changer, with electronic control
- X travel
4,295 mm
(169.09 in)- Y travel
910 mm
(35.83 in)- Z travel
475 mm
(18.7 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
8 kW
(10.88 hp)- Weight
2,900 kg
(6,393.41 lb)- Overall length
6,592 mm
(259.5 in)- Overall height
3,000 mm
(118.1 in)
Description
Product overview
Machine configuration
Options
Technical data
SBZ 122/71
- Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
- Routing, drilling and tapping are performed with the profile bar stationary to protect profile surfaces
- Spindle-integrated rotation unit allows angle head positions 0° / -90° / -180° / -270°
- Intelligent control improves machining results and reduces energy consumption
- Dynamic servo drives enable rapid positioning up to 120 m/min on the X-axis
- Automatic clamp recognition and positioning to prevent collisions; tapping without compensation chuck
- Automatic tool changer with four tray positions; separate changer for angle head; tool holder HSK-F63
- 18.5" panel PC with Windows and i5 processor; eluCam for simple program entry; remote online maintenance; UPS included
Machine configuration
- Air-cooled 8 kW S1 routing spindle with feedback
- Operator enclosure and safety functions integrated in drives
- Four horizontal pneumatic material clamps (standard), expandable to eight
- Material stop (left) and optional right stop for overlength machining
- HSK-F63 rotating angle head for two tools; tool holder HSK-F63
- Swarf trays, minimum-volume lubrication and high-performance cutting fluid
- Hand-held operator terminal and depth gauge
Options
- Additional tools and tool holders
- Automatic tool changer for up to four standard tools or for angle head
- 21.6" panel PC (i7), barcode scanner, note holder
- Green Line cooling unit for control cabinet; full protective enclosure option
- Length measurement on both sides, double clamping and other accessories on request
Technical data
SBZ 122/71
- Max. machining length without end machining: 4,150 mm
- Max. machining length with end machining: 4,000 mm
- Traverse X / Y / Z: 4,295 mm / 910 mm / 475 mm (Vmax X 120 / Y 60 / Z 50 m/min)
- Directions of machining: 5 (top, rear, front, left, right)
- Positioning accuracy: ±0.1 mm
- Routing spindle: 8 kW S1, max. 24,000 rpm (air-cooled); tool holder HSK-F63
- Tool magazine positions: 4 (max. 16); automatic tool change
- Disc milling cutter diameter: 120 mm; max. tool length: 150 mm
- Compressed air: > 7 bar; air consumption approx. 185 l/min with spraying
- Power supply: 400 V, 3~, 50 Hz, 25 A
- Dimensions (L x D x H): 6,592 x 2,171 x 3,000 mm; Weight approx. 2,900 kg
