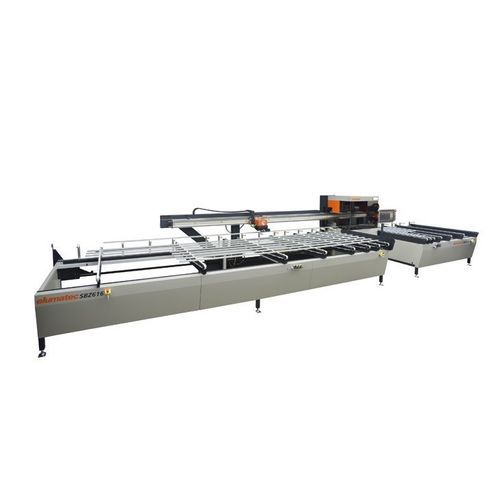

Rotary blade cut-to-length cutting line SBZ 616/02
bladefor aluminum profilesservo-driven

Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 2
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 3
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 4
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 5
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 6
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 7
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 8
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 9
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 10
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 11
Rotary blade cut-to-length cutting line - SBZ 616/02 - ELUMATEC - blade / for aluminum profiles / servo-driven - image - 12
Add to favorites
Compare this product

Characteristics

Technology
rotary blade, blade
Product handled
for aluminum profiles
Control type
servo-driven
Applications
for metal fabrication
Workpiece loading
with automated loading
Other characteristics
automatic, cut-to-length, pneumatic, transversal, with conveyor, with servo-motor

Description

Overview
Automatic saw for aluminium profiles.
  • Loading magazine for up to nine profiles
  • Lifting function for cycling the magazine compartments
  • In- and outfeed gripper with motorised, continuously adjustable gripper jaw
  • Rubberised gripper jaws to prevent profile damage
  • Hydro-pneumatic saw feed
  • Pulsed/dosed coolant system
  • Outfeed via belt conveyor with lifting function for finished profiles without affecting the automatic cycle


Options
  • Label printer


Technical data
  • Large saw blade diameter: 550 mm
  • Cutting range: see cutting diagram
  • Saw motor: 4 kW
  • Continuously adjustable pivoting range with servo drive: -22.5° to +22.5°


Characteristics / technical specifications
  • Type: cut-to-length centre for aluminium profiles
  • Loading magazine capacity: up to 9 profiles
  • Magazine lifting: for timing/advancing empty compartments
  • Feed system: in- and outfeed grippers with motorised, continuously adjustable jaws
  • Gripper protection: rubberised gripper jaws to avoid profile damage
  • Saw feed: hydro-pneumatic
  • Coolant/lubrication: pulsed/dosed system
  • Outfeed: belt conveyor with lifting function for finished profiles (no interruption of automatic process)
  • Optional equipment: label printer
  • Cutting range: see cutting diagram
