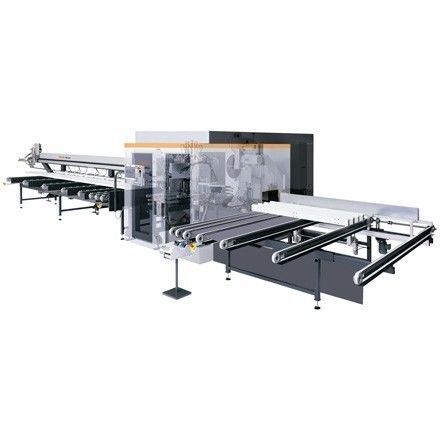

7-axis CNC machining center SBZ 630
horizontalfor aluminum30 tools

7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 2
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 3
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 4
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 5
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 6
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 7
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 8
7-axis CNC machining center - SBZ 630 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 9
Add to favorites
Compare this product

Characteristics

Number of axes
7-axis
Spindle orientation
horizontal
Machined material
for aluminum
Number of tool stations
30 tools
Associated functions
milling, cutting
Applications
for aluminum profiles
Other characteristics
modular
Power

7 kW
(9.52 hp)

Table rotation (C axis)

350 °

Description

Product overview
  • Profile machining centre with loading and outfeed magazine
  • Modular design configurable as SBZ 630/01 automatic saw or SBZ 630/11 complete machining centre
  • Aluminium machining station supporting up to 30 routing units
  • Cutting-to-length by integrated 7-axis sawing station
  • Work sequence configurable left-to-right or right-to-left


Options
  • Label printer
  • Barcode scanner
  • Loading magazine for 10 profile bars (up to 130 mm width)
  • eluCad production management software


Technical data
  • Profile lengths and residual pieces: 500–7,500 mm
  • Standard loading magazine: 7 bars (up to 250 mm width); optional 10-bar magazine (up to 130 mm)
  • Gripper arm with automatic vertical, horizontal and rotational axes (350°)
  • Vertical clamps: automatic horizontal setting 5–70 mm
  • Machining module for up to 30 routing units
  • 1-blade saw, 7 kW; variable cuts 45°–135° (tiltable/pivotable)
  • Profile outfeed via conveyor


Variants / notes
  • Configurable variants: SBZ 630/01 (automatic saw) or SBZ 630/11 (complete machining centre); example: SBZ 630/11/L + special accessories
