5-axis machining center SBZ 125/85

universalfor steelfor PVC

Product overview

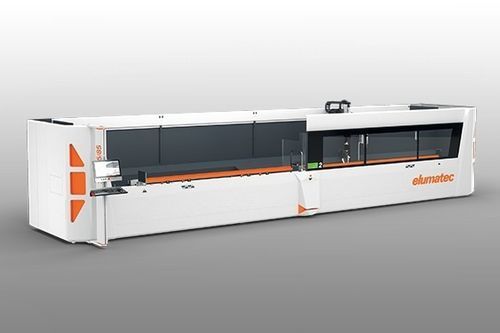

SBZ 125/85 is an enclosed‑cabin profile machining centre with five axes and an 8 m working length. Its dynamic shuttle (pendulum) operation enables parallel loading and milling, allowing the machine to replace two smaller machines. It is designed for aluminium, PVC and thin‑walled steel profiles and focuses on reduced setup times, improved access and ergonomics.

Key features

• New tool‑change technology: faster changeovers and a larger linear tool magazine to increase usable workspace.
• Ergonomic clamp system: adjustable clamps on the Y axis and autonomous clamp positioning for fast, tool‑free conversion between profile widths and sections.
• Dynamic shuttle operation: parallel routing and insertion of material to increase throughput and permit machining of long parts extending beyond the machine centre.
• Integrated safety and access control: programmable laser scanner with three‑zone division and removable central protection for pendulum mode.
• High‑speed electrospindle and tool interface: 7 kW (S1), up to 20,000 rpm, toolholder cone HSK 63F; magazine capacity up to 12 tools.

Options and accessories

• Optional chip conveyor for automatic evacuation of coarse chips and profile sections.
• Additional clamps (up to 12) and customized clamping configurations.
• Control and measurement upgrades (panel PC options, length measurement, barcode scanner) and Industry 4.0 connectivity.

Technical data (selected)
Layout / dimensions: SBZ 125/85
Total length (A) (mm): ~ 11.350
Depth without control panel (B) (mm): ~ 2.330
Total depth with control panel (C) (mm): ~ 3.170
Height (mm): ~ 2.350
Weight (kg): ~ 3.800
Working height above ground (mm): 980

Axis strokes:
X axis (mm): 9.007
Y axis (mm): 1.038
Z axis (mm): 555
A axis: -120° / +120°
C axis: -220° / +220°

Electrospindle:
Maximum power in S1 (kW): 7
Maximum speed (rpm): 20.000
Toolholder cone: HSK 63F

Operating mode:
One‑piece full‑length machining: included
Pendulum operation with stops on right and left: included

Automatic tool magazine:
Type: linear tool changer
Tool magazine movable automatically: included
Maximum number of magazine tools: 12

Workpiece clamping:
Autonomous clamp positioning: included
Standard number of clamps: 8 (max. 12)

Machinable faces: 5 (front/top/back/ends)

Work area (mm) — single mode: A = 135; X1 = 8.245; Y1 = 300; Z1 = 203; X2 = 8.245; Y2 = 207; Z2 = 203 — double/pendulum mode: A = 135; X1 = 3.100; Y1 = 300; Z1 = 203; X2 = 3.100; Y2 = 207; Z2 = 203

Machinable profile length with blade Ø 300 mm: single mode = 8.245 mm; double mode = 2.295 mm
