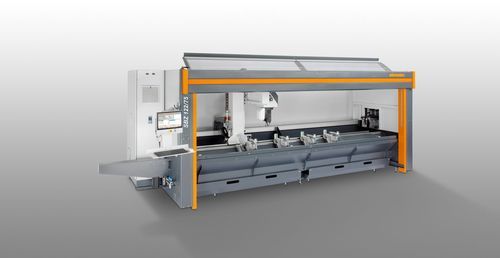

Multifunction cutting and machining center SBZ 122/75CNCfor aluminum profilesfor PVC profiles
Add to favorites
Compare this product
Characteristics
- Type
- CNC, multifunction
- Material to be tapped
- for PVC profiles, for aluminum profiles
Description
Product description
Machine configuration
Options
Technical specifications
- Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
- All operations (routing, drilling, tapping) are carried out with the profile bar stationary to protect profile surfaces
- A-axis continuously adjustable from -120° to +120° and C-axis from -220° to +220°; all five axes can move simultaneously with RTCP
- Autonomous clamp positioning with automatic clamp recognition to prevent collisions
- Fast positioning of the machining unit up to 120 m/min via dynamic servo drives
- Tapping without compensation chuck; 2-axis add-on with A and C axes can accept a 180 mm saw blade
- Ergonomic inclined bed, state-of-the-art 5-axis controller and absolute rotary encoders (no homing required)
- Power-Torque routing spindle with enclosed speed control for short start/stop times; low power consumption and DC link coupling for improved energy efficiency
- Windows-based 18.5" panel PC (i5), eluCam programming on the operator panel and remote online maintenance
- Uninterruptible power supply (UPS) and certified drive-integrated safety functions
Machine configuration
- Water-cooled routing spindle 7 kW, S1
- Autonomous clamp positioning and automatic clamp recognition
- Operator protection enclosure and four horizontal pneumatic material clamping units
- Material stop on the left
- Tool holder HSK-F63 and automatic tool changer with 12 tool tray positions (without tools)
- Swarf trays for chip removal, minimum-volume lubrication system and high-performance cutting fluid
- Hand-held operator terminal and depth gauge
Options
- Tools and tool holders
- Saw blade 180 mm
- Length measurement on both sides and additional stop for overlength machining (left)
- Material reference stop (right) for overlength positioning
- Green Line cooling unit for reduced energy consumption in the control cabinet
- Barcode scanner and fully enclosing protective enclosure (optional)
- Standard four clamps, expandable up to eight; double clamping and other accessories on request
- Panel PC 21.6" (i7), note holder, sound insulation hood, collision-optimised clamping unit
Technical specifications
- Model: SBZ 122/75
- Max. machining length without profile end machining: 3,851 mm
- Max. machining length with profile end machining: 3,525 mm
- Traverse path X-axis: 4,176 mm, Vmax. 120 m/min
- Traverse path Y-axis: 1,040 mm, Vmax. 60 m/min
- Traverse path Z-axis: 540 mm, Vmax. 30 m/min
- Direction of machining: 5 (above, behind, front, left, right)
- Positioning accuracy: ±0.1 mm
- Routing spindle speed: max. 20,000 rpm; routing spindle power: 7 kW, S1 (water-cooled)
- Tool holder: HSK-F63; tool changing: automatic; tool tray positions: 12
- Disc milling cutter diameter: 120 mm; saw blade diameter: 180 mm; tool length max.: 150 mm
- Clamp positioning: autonomous; clamps: Premium (with linear guides)
- Software: eluCam; compressed air: > 7 bar
- Power supply: 400 V, 3~, 50 Hz, 25 A; air consumption approx. 185 l/min (with spraying)
- Total length: 7,643 mm; depth: 2,171 mm; height: 3,000 mm; weight: approx. 3,800 kg
