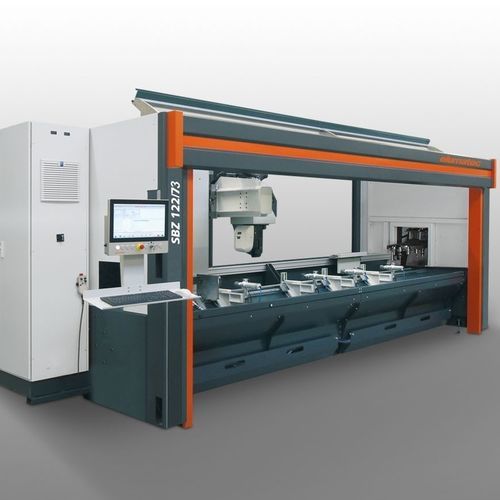

4-axis machining center SBZ 122/73horizontalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- horizontal
- Machined material
- for steel, for aluminum, for PVC
- Structure
- inclined bed
- Spindle mount
- HSK F63
- Number of tool stations
- 12 tools
- Associated functions
- milling, drilling, tapping
- Applications
- for the aluminum industry, for PVC window profiles, for the steel industry
- Other characteristics
- high-performance, with pneumatic clamping, single-head
- X travel
4,176 mm
(164.41 in)- Y travel
1,040 mm
(40.94 in)- Z travel
540 mm
(21.26 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 20,000 rpm
(125,664 rad.min-1)- Power
7 kW
(9.52 hp)- Weight
3,800 kg
(8,377.57 lb)- Overall length
7,643 mm
(300.9 in)- Overall height
3,000 mm
(118.1 in)
Description
Overview
Machine configuration
Options
Technical specifications
- Profile machining centre designed for economical, stationary-bar machining of aluminium, PVC and thin-walled steel profiles
- Performs routing, drilling and tapping with the profile bar clamped to preserve surface quality
- Continuous A-axis adjustment −120° to +120° and automatic clamp positioning to avoid collisions
- High dynamics: machining unit positioning up to 120 m/min with dynamic servo drives
- 4-axis controller, absolute encoder system (no homing required), eluCam programming on panel PC
- Energy-efficient drive technology with DC link coupling and uninterruptible power supply (UPS)
- Automatic 12-position tool changer, tool holder HSK-F63, water-cooled 7 kW S1 routing spindle (max 20,000 rpm)
- Ergonomic inclined bed, operator protection enclosure and remote online maintenance
Machine configuration
- Water-cooled routing spindle 7 kW, S1
- Operator protection enclosure
- Four horizontal pneumatic material clamps (standard)
- Material stop (left)
- Tool holder HSK-F63
- Swarf trays for chip removal
- Minimum-volume lubrication and high-performance cutting fluid
- Hand-held operator terminal and depth gauge
- 18.5" panel PC, Intel i5, USB and network ports
Options
- Tools and additional tool holders
- Additional stop for overlength machining (left) and material reference stop (right) with second clamping circuit
- Green Line cooling unit for reduced cabinet energy consumption
- Barcode scanner and fully enclosed protective enclosure with extra sound insulation
- Expansion to up to eight clamps, double clamping and collision-optimised clamping units
- 21.6" panel PC (i7), note holder, sound insulation hood, wireless measurement sensor
Technical specifications
- Model: SBZ 122/73
- Max. machining length (without end machining): 4,050 mm
- X travel: 4,176 mm, Vmax 120 m/min
- Y travel: 1,040 mm, Vmax 60 m/min
- Z travel: 540 mm, Vmax 30 m/min
- Machining directions: 3 (above, behind, front)
- Positioning accuracy: ±0.1 mm
- Routing spindle: 7 kW S1, water-cooled, max 20,000 rpm; tool holder HSK-F63
- Tool changer: automatic, 12 tray positions
- Clamp positioning: automatic; standard clamps: Basic with linear guides
- Software: eluCam (Windows)
- Compressed air: >7 bar
- Power supply: 400 V, 3~, 50 Hz, 25 A
- Air consumption: approx. 185 l/min (with spraying)
- Dimensions (L x P x H): 7,643 mm x 2,171 mm x 3,000 mm
- Weight: approx. 3,800 kg
