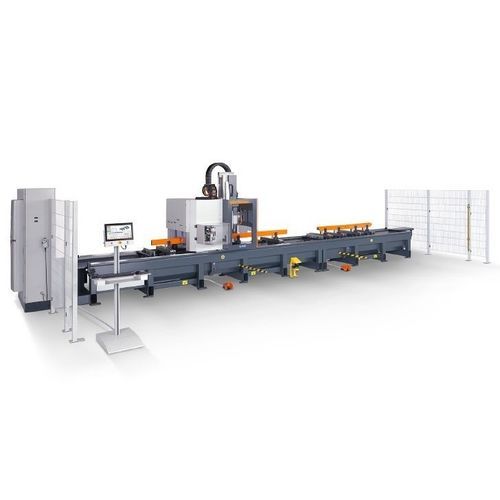

4-axis machining center SBZ 140for steelfor aluminumHSK F63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Machined material
- for steel, for aluminum
- Spindle mount
- HSK F63
- Number of tool stations
- 8 tools, 16 tools
- Associated functions
- milling, drilling, tapping
- Applications
- for aluminum profiles
- Other characteristics
- high-speed, high-performance, with tool changer
- X travel
Min.: 4,320 mm
(170.08 in)Max.: 9,820 mm
(386.61 in)- Y travel
845 mm
(33.27 in)- Z travel
620 mm
(24.41 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 24,000 rpm
(150,796 rad.min-1)- Power
11 kW
(14.96 hp)- Weight
5,000 kg, 7,400 kg, 8,200 kg
(11,023.11 lb, 16,314.21 lb, 18,077.91 lb)
Description
Overview
Machining lengths
SBZ 140 – 4.2 m
SBZ 140 – 7.6 m
SBZ 140 – 9.7 m
Options
Technical specifications
- 4-axis profile machining centre for economical machining of aluminium and thin-walled steel profiles
- Standard air-cooled router spindle; water-cooled spindle available as an option
- All operations (routing, drilling, tapping) performed with the profile bar stationary to protect profile surfaces
- Continuous tool angling from -90° to +90° for flexible machining
- Automatic clamp positioning with absolute measurement system
- On-board tool magazine for short tool-change times (standard 8 positions)
- Optional up to two rotating angle heads (each with two tools) for double-bar and end machining (0°–90°–180°–270°)
- Optional two separate working zones for shuttle operation with operator-side laser scanner for area protection
- 4-axis controller, 18.5" colour display, USB and network connection; Windows OS; eluCam
Machining lengths
SBZ 140 – 4.2 m
- Max. machining length with profile end machining: 4,200 mm
- Max. machining length without profile end machining: 4,320 mm
SBZ 140 – 7.6 m
- Max. machining length with profile end machining: 7,600 mm
- Max. machining length without profile end machining: 7,720 mm
SBZ 140 – 9.7 m
- Max. machining length with profile end machining: 9,700 mm
- Max. machining length without profile end machining: 9,820 mm
Options
- Shuttle operation for two-zone processing
- Automatic length measurement on both sides
- Clamping unit for double profile machining
- Barcode/profile-code scanner
- Stationary tool magazine (16 positions) option
- On-board tool changers for angle head or saw head
- Angle routing heads and saw head
- Tool holders, collet chucks, collets and tools
- eluCad office software for production management
Technical specifications
- Model: SBZ 140
- Max. machining length (without end machining): 4,320 / 7,720 / 9,820 mm
- Max. machining length (with end machining): 4,200 / 7,600 / 9,700 mm
- X travel: 4,320 / 7,720 / 9,820 mm (other lengths on request), Vmax 63 m/min
- Y travel: 845 mm, Vmax 60 m/min
- Z travel: 620 mm, Vmax 60 m/min
- A-axis pivot range: -90° / 0° / +90°
- Spindle speed: max. 24,000 rpm
- Spindle power: 11 kW S1
- Tool holder: HSK-63F
- Tool changer: on-board magazine, 8 positions (additional positions on request)
- Angle head: max. 2 (optional)
- Disc milling cutter diameter: 120 mm; saw blade diameter: 180 mm
- Clamps: 4 / 8 / 12 (max. 16), automatic clamp positioning
- Compressed air: > 7 bar
- Power supply: 400 V, 3~, 50 Hz, 63 A
- Air consumption: approx. 180 l/min with spraying
- Approx. total length: 7,700 / 11,240 / 13,390 mm; depth: approx. 3,400 mm; height: approx. 2,950 mm
- Weight: approx. 5,000 / 7,400 / 8,200 kg
