3-axis machining center SBZ 122/70 Plus
horizontalfor steelfor aluminum

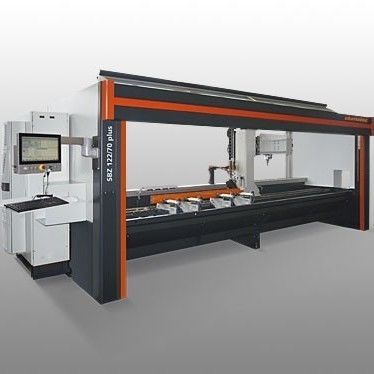

3-axis machining center - SBZ 122/70 Plus - ELUMATEC - horizontal / for steel / for aluminum
3-axis machining center - SBZ 122/70 Plus - ELUMATEC - horizontal / for steel / for aluminum
3-axis machining center - SBZ 122/70 Plus - ELUMATEC - horizontal / for steel / for aluminum - image - 2
3-axis machining center - SBZ 122/70 Plus - ELUMATEC - horizontal / for steel / for aluminum - image - 3
3-axis machining center - SBZ 122/70 Plus - ELUMATEC - horizontal / for steel / for aluminum - image - 4
3-axis machining center - SBZ 122/70 Plus - ELUMATEC - horizontal / for steel / for aluminum - image - 5
3-axis machining center - SBZ 122/70 Plus - ELUMATEC - horizontal / for steel / for aluminum - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Machined material
for steel, for aluminum, for PVC
Structure
inclined bed
Spindle mount
HSK F63
Associated functions
milling, drilling, tapping
Applications
for aluminum profiles
Other characteristics
high-performance, with automatic tool changer, with control panel
X travel

4,295 mm
(169.09 in)

Y travel

910 mm
(35.83 in)

Z travel

475 mm
(18.7 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

8 kW
(10.88 hp)

Weight

2,900 kg
(6,393.41 lb)

Overall length

3,592 mm
(141.4 in)

Overall height

3,000 mm
(118.1 in)

Description

Overview
  • Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles with the profile bar stationary to protect profile surfaces.
  • Routing, drilling and tapping operations are carried out while the profile bar is stationary; tapping without compensation chuck.
  • Intelligent control technology and a state-of-the-art 3-axis controller improve machining results and reduce energy consumption.
  • Dynamic servo drives enable fast positioning of the machining unit up to 60 m/min; absolute rotary encoders eliminate axis homing.
  • Automatic clamp recognition and positioning prevents collisions; ergonomic inclined bed improves operator access.
  • Power-Torque air-cooled routing spindle 8 kW (S1), max 24,000 rpm, enclosed speed control; tool holder HSK-F63; automatic tool changer 4 positions (expandable).
  • UPS, Windows OS, 15.6" panel PC (i3) with USB and network; eluCam for simple program entry during operation; remote online maintenance.


Machine configuration
  • Air-cooled 8 kW S1 routing spindle.
  • Operator protection enclosure.
  • Four horizontal pneumatic material clamps (standard).
  • Material stop (left).
  • Tool holder HSK-F63; minimum-volume lubrication; high-performance cutting fluid.
  • Hand-held operator terminal; depth gauge.


Options
  • Additional tools and tool holders.
  • Automatic tool changer for up to four standard tools or for an angle head; HSK-F63 rotating angle head for two tools.
  • Green-Line cooling unit for the control cabinet; barcode scanner; fully enclosed protective enclosure (optional).
  • Up to eight clamps (four standard); material reference stops and additional stops for overlength machining.
  • Length measurement on both sides; double clamping and other accessories on request; larger panel PCs (18.5" i5, 21.6" i7); sound insulation hood; swarf trays.


Technical data
  • Model: SBZ 122/70 Plus
  • Max. machining length without end machining: 4,150 mm
  • Max. machining length with end machining (optional): 4,000 mm
  • X-axis traverse: 4,295 mm, Vmax 60 m/min
  • Y-axis traverse: 910 mm, Vmax 45 m/min
  • Z-axis traverse: 475 mm, Vmax 60 m/min
  • Positioning accuracy: ±0.1 mm
  • Routing spindle speed: max 24,000 rpm; power: 8 kW S1 (air-cooled)
  • Tool holder: HSK-F63; automatic tool change (4 positions, max 16)
  • Disc milling cutter diameter: 100 mm; max tool length: 150 mm
  • Compressed air: > 7 bar; Power supply: 400 V, 3~, 50 Hz, 25 A
  • Air consumption approx. 185 l/min (with spraying)
  • Machine dimensions (L×D×H): 6,592 × 2,171 × 3,000 mm; Weight approx. 2,900 kg


Technical specifications
  • Application: machining of bar/profile in aluminium, PVC and thin-walled steel
  • Automatic clamp recognition and positioning; intelligent control for energy efficiency
  • Software: eluCam
  • UPS and remote maintenance capability
