7-axis CNC machining center SBZ 631
horizontalfor aluminum30 tools

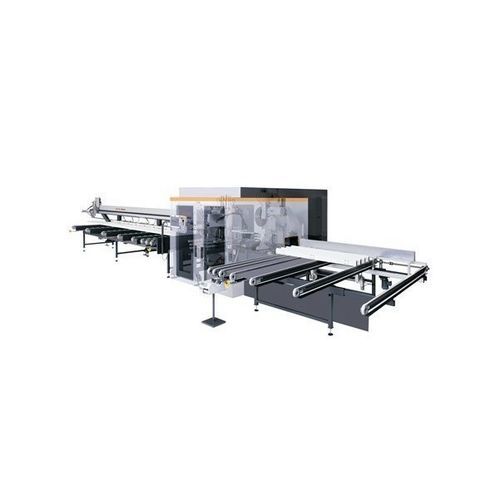

7-axis CNC machining center - SBZ 631 - ELUMATEC - horizontal / for aluminum / 30 tools
7-axis CNC machining center - SBZ 631 - ELUMATEC - horizontal / for aluminum / 30 tools
7-axis CNC machining center - SBZ 631 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 2
7-axis CNC machining center - SBZ 631 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 3
7-axis CNC machining center - SBZ 631 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 4
7-axis CNC machining center - SBZ 631 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 5
7-axis CNC machining center - SBZ 631 - ELUMATEC - horizontal / for aluminum / 30 tools - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
7-axis
Spindle orientation
horizontal
Machined material
for aluminum
Number of tool stations
30 tools
Associated functions
milling, cutting
Applications
for aluminum profiles
Other characteristics
modular, for production
Power

7 kW
(9.52 hp)

Table rotation (C axis)

Max.: 135 °

Min.: 45 °

Description

Overview
  • Profile machining centre with loading and outfeed magazines for continuous processing of aluminium profiles
  • Modular design: configurable as automatic saw (SBZ 630/01) or as complete profile machining centre (SBZ 630/11)
  • When configured for aluminium machining, processing takes place in a single machining station supporting up to 30 routing units
  • Cut-to-length performed by a 7-axis sawing station (variable cutting angles 45°–135°)
  • Work sequence direction selectable: left-to-right or right-to-left
  • Optional notching/end-processing module: AM 631


Options
  • Label printer
  • Barcode scanner
  • Loading magazine option for 10 profile bars (up to 130 mm profile width)
  • eluCad production management software


Technical data
  • Profile length range: 500–7,500 mm
  • Standard loading magazine: 7 profile bars (up to 250 mm width)
  • Optional loading magazine: 10 profile bars (up to 130 mm width)
  • Gripper arm: automatic height, lateral and rotational axes (350°)
  • Vertical clamps: automatic horizontal adjustment 5–70 mm
  • Machining module: up to 30 routing units
  • Saw: single-blade 7 kW, variable cuts 45°–135° (tilted or pivoted)
  • Profile outfeed via outfeed conveyor


Applications / Specifications
  • Designed for aluminium profile processing in industrial production lines
  • Modular configuration adapts to dedicated sawing or full machining workflows
  • Compatible peripherals: eluCad software, label printer, barcode scanner, AM 631 notching module
