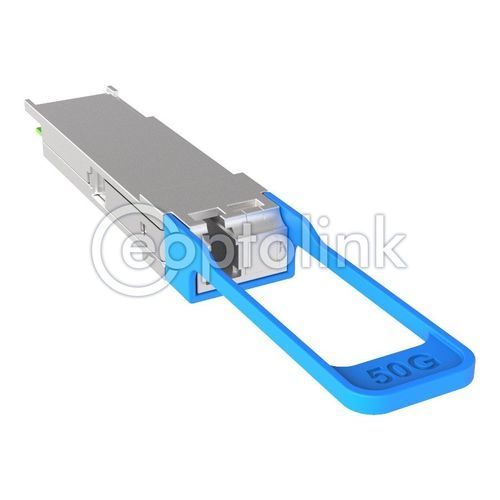

Fiber optic transceiver module 50G BIDI QSFP28 gigabit Ethernet2-channeldata
Add to favorites
Compare this product
Characteristics
- Network
- for fiber optics, gigabit Ethernet
- Number of channels
- 2-channel
- Other characteristics
- data, single-mode, QSFP
Description
Eoptolink’s EOLQ-BI1650G-O-10-XXL 50G PAM4 QSFP28 transceiver module is designed for 50 Gigabit Ethernet links up to 40Km single mode fiber. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.
Supports 53.125Gbps
Single 3.3V Power Supply and Power dissipation < 4.5W
Up to 40km over SMF
Commercial case temperature range of 0°C to 70°C
Support both 2x25.78Gbps(enable KP4 FEC in module) and 2x26.5625Gbps electrical interfaces
BIDI LC receptacles
I2C interface with integrated Digital Diagnostic Monitoring
Safety Certification: TUV/UL/FDA
RoHS Compliant
