Round cap SR1078

low-density polyethylene

Product Details

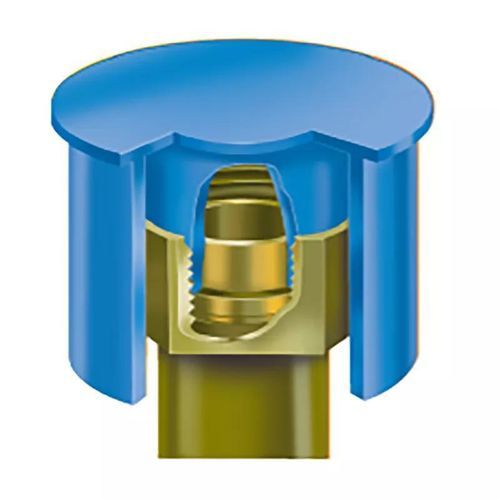

Our range of O-Ring Face Seal Caps are designed to protect O-Ring face seal connectors that are used on hydraulic connections.

The cap design features a longer overall length for added protection from the ingress of dirt and other contaminants. They also include a moulded retaining ring at the bottom that snaps under the connector to keep it securely in place during transit and processing.

Our range is suitable for both UNF and JIC thread sizes.

• Designed for the protection of O-Ring face seal connectors used on hydraulic connections.

• Features a longer overall length for added protection.

• Suitable for UNF and JIC threads.

Material and Colour
Material: LDPE
Colour: Black, Blue
Series Code: SRCFST, SR1078

Technical Specifications

• Material: LDPE (Low-Density Polyethylene)
• Colour options: Black, Blue
• Thread compatibility: UNF and JIC threads
• Retaining ring: Moulded at the bottom for secure fit
• Protection: Prevents ingress of dirt and contaminants
• Application: Hydraulic connections, O-Ring face seal connectors
• Available in multiple sizes (see below for dimensional options)

Dimensional Options (Selection)
D (Diameter): 22.2 mm, 24.4 mm, 25.0 mm, 29.4 mm, 34.9 mm, 41.3 mm, 46.8 mm, 54.0 mm
d1 (Outer Ring Inside Diameter): 18.0 mm, 19.5 mm, 22.9 mm, 26.8 mm, 31.9 mm, 38.9 mm, 45.8 mm, 53.2 mm
d2 (Inner Ring Inside Diameter): 12.7 mm, 14.0 mm, 15.1 mm, 19.1 mm, 23.0 mm, 27.8 mm, 34.1 mm, 40.5 mm
L (Length): 13.8 mm, 14.7 mm, 17.1 mm, 21.0 mm, 23.4 mm, 26.2 mm, 27.8 mm
L1 (Inner Ring Length): 8.3 mm, 9.4 mm, 10.2 mm, 10.9 mm, 13.5 mm, 14.5 mm, 14.7 mm
Thread Size: 1-11/16-12, 1-3/16-12, 1-7/16-12, 1/14, 9/16-18, 11/16-16, 13/16-16 in
Thread Standard: DIN 43650, JIC Threads, UNF Threads
