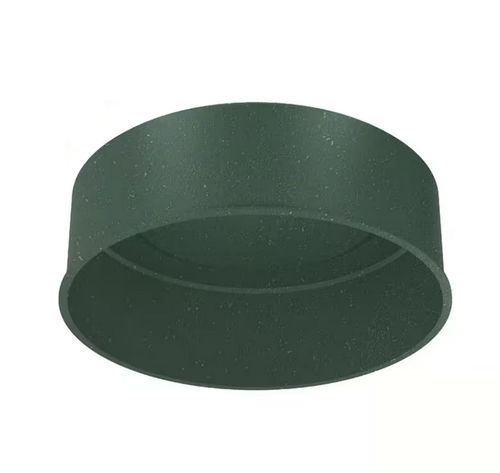

Plastic pipe protector SRTXTPEPCR

PEpush-fitfor pipes

Protective pipe caps made from LDPE (PCR) offer reliable protection for pipe ends and tubing during storage, transport and manufacturing. These press-fit caps prevent ingress of dirt and moisture, reduce corrosion risk and include a vent hole to equalize pressure caused by atmospheric changes.

Variants / Available references

• 20749217 — Cap for pipe DN 90 — Ø 93.3 mm — Material: LDPE - PCR — Colour: Green — Price shown: €0.504 - €0.56 — Availability: Request lead time
• 20749231 — Cap for pipe DN 125 — Ø 130.0 mm — Material: LDPE - PCR — Colour: Green — Price shown: €0.747 - €0.83 — Availability: 200 in stock
• 20749224 — Cap for pipe DN 110 — Ø 116.0 mm — H: 38.6 mm — Material: LDPE - PCR — Colour: Green — Price shown: €0.6255 - €0.695 — Availability: Request lead time
• 20749248 — Cap for pipe DN 160 — Ø 160.0 mm — H: 49.5 mm — Material: LDPE - PCR — Colour: Green — Price shown: €1.08 - €1.20 — Availability: Request lead time
• 20749286 — Cap for pipe DN 280 — Ø 288.0 mm — Material: LDPE - PCR — Colour: Green — Price shown: €4.014 - €4.46 — Availability: Request lead time
• 20749194 — Cap for pipe DN 50 — Ø 55.1 mm — Material: LDPE - PCR — Colour: Green — Price shown: €0.153 - €0.238 — Availability: Request lead time
• 20749255 — Cap for pipe DN 180 — Ø 183.6 mm — Material: LDPE - PCR — Colour: Green — Price shown: €1.62 - €1.80 — Availability: Request lead time
• 20749262 — Cap for pipe DN 200 — Ø 200.0 mm — Material: LDPE - PCR — Colour: Green — Price shown: €2.34 - €2.60 — Availability: Request lead time
• 20749200 — Cap for pipe DN 75 — Ø 81.7 mm — Material: LDPE - PCR — Colour: Green — Price shown: €0.324 - €0.504 — Availability: Request lead time
• 20749279 — Cap for pipe DN 250 — Ø 250.0 mm — Material: LDPE - PCR — Colour: Green — Price shown: €3.1311 - €3.479 — Availability: Request lead time

Characteristics / technical specifications

• Mounting type: press-fit (snap-on)
• Material: LDPE - PCR (post-consumer recycled plastic)
• Colour: Green
• Series / model: SRTXTPEPCR
• Vent: integrated vent hole for atmospheric pressure equalization
• Intended use: protection during storage, transport and manufacturing; removable manually or by automated equipment
• Recycled content: 100%
• HS code / tariff classification: 3923509000
• Available nominal diameters: DN 50, DN 75, DN 90, DN 110, DN 125, DN 160, DN 180, DN 200, DN 250, DN 280
• Manufacturer: Essentra Components
