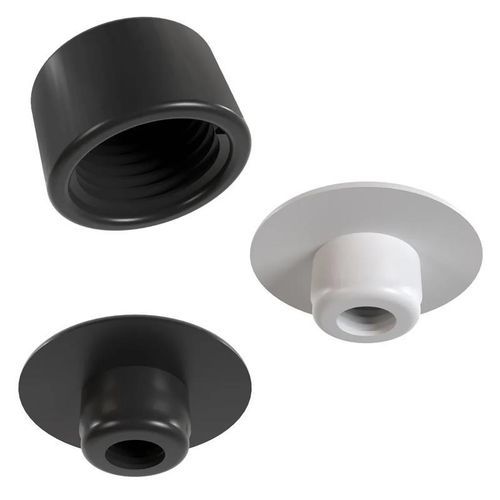

Round cap SR1813

metalsiliconesocket head

Product Details
Socket Screw Cover Caps protect socket head screws, preventing damage caused by corrosion and the ingress of impurities. They also add aesthetical appeal. Can tolerate temperatures ranging from -40°C up to +150°C. Used for automotive and electrical purposes.

• Used for the inside of UPS boxes when high voltage cables pass close to metal screw heads.

• Cover and protect socket head screws from dust and dirt, while providing a quick and clean finish.

• Used in appliances, electrical applications and automotive.

Material and Colour
Material: Silicone, LDPE
Colour: Black, White, Grey
Series Code: SR1628, SR1813

Available Sizes (Selection)
D (Diameter): 8.9 mm, 9.0 mm, 10.0 mm, 13.0 mm, 16.0 mm, 18.0 mm, 24.0 mm, 30.0 mm
To Fit Socket Head Cap Screw: M5, M6, M8, M10, M12, M16, M20
Other dimensions (depending on variant):
Fitting Diameter: 4.2 mm, 5.2 mm, 6.2 mm, 6.7 mm, 8.2 mm, 9.7 mm, 10.3 mm, 14.4 mm, 17.4 mm
Overall Height: 3.8 mm, 4.5 mm, 5.5 mm, 6.5 mm, 6.6 mm, 7.5 mm, 8.2 mm, 8.5 mm, 9.2 mm, 11.5 mm

Caractéristiques / Spécifications techniques

• Material: Silicone, LDPE
• Colour options: Black, White, Grey
• Temperature tolerance: -40°C to +150°C
• Applications: Automotive, electrical, appliances, UPS boxes
• Protects against corrosion, dust, dirt, and impurities
• Provides a clean and aesthetic finish
• Available for socket head cap screws: M5, M6, M8, M10, M12, M16, M20
• Series Code: SR1628, SR1813
