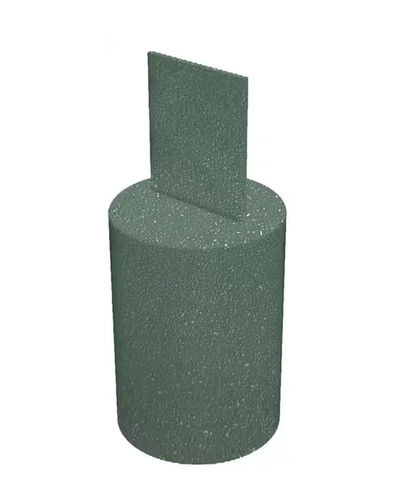

Press-fit cap SRQCFPCR

roundlow-density polyethyleneprotective

Protective caps for Quick Fit connectors (labeled PCR) are caps designed for male quick-release connectors compliant with SAE standards. They protect hydraulic components from dust, moisture, impact and residual fluid during manufacturing, testing, storage and transport. A long central pull tab enables secure grip and easy removal, suitable for fluid-handling environments.

Available variants

• 20750046 — SAE cap 15.8 mm LDPE - PCR, green — Price range: €0.0596 - €0.0928 — Inner diameter (d): 15.6 mm — Height (h): 25.5 mm — Total height (H): 41.5 mm — Thread size indicated: 15.8 mm — Thread standard: SAE.
• 20750053 — SAE cap 24.0 mm LDPE - PCR, green — Price range: €0.0668 - €0.104 — Inner diameter (d): 23.8 mm — Height (h): 27.5 mm — Total height (H): 43.5 mm — Thread size indicated: 24.0 mm — Thread standard: SAE.

Features / technical specifications

• Material: LDPE (low-density polyethylene) manufactured from post-consumer recycled material (PCR).
• Color: Green.
• Series: SRQCFPCR.
• Application: Protection of male quick-fit connectors in hydraulic/fluid systems (prevents ingress of dust and moisture, protects against impacts and residual leakage during handling).
• Design: Long central pull tab for strong grip and easy removal.
• Installation: Push-fit.
• Standards / compliances listed: REACH, RoHS.
