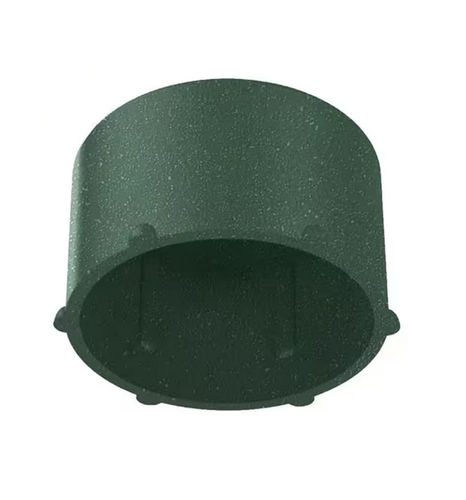

Threaded cap SRCFBPCR

press-fitroundlow-density polyethylene (LDPE)

The SRCFBPCR push-fit threaded end cap protects metric, BSP (GAS) and UNF threads from dirt, dust and moisture via an easy-to-apply push-fit end that can be installed manually and provides secure retention. Designed for manufacturing, storage and transport, this series is a cost-effective alternative to traditional threaded profiles.

Main features and benefits

• Protection of metric, BSP (GAS) and UNF/UN threads against contaminants (dirt, dust, moisture).
• Quick push-fit installation for manual application and secure hold.
• Intended for use in production, storage and transport of components.
• Manufactured from post-consumer recycled material (LDPE - PCR) to support ESG objectives.
• Standard colour: Green.

Examples of available variants (selection)

• Ref. 20751920 — Thread: 1" x 14 UNF — Material: LDPE - PCR — Colour: Green — Price range shown: €0.0465 - €0.0723.
• Ref. 20751999 — Thread: M42 (metric) — Material: LDPE - PCR — Colour: Green — Price range shown: €0.0720 - €0.0801.
• Ref. 20752002 — Thread: 7/16" x 20 UNF — Material: LDPE - PCR — Colour: Green — Price range shown: €0.0251 - €0.0390.
• Ref. 20751852 — Thread: 1/4" GAS — Material: LDPE - PCR — Colour: Green — Price range shown: €0.0156 - €0.0174.

Characteristics / technical specifications

• Series: SRCFBPCR.
• Material: LDPE - PCR (low-density polyethylene, post-consumer recycled).
• Compatible threads: metric, GAS (BSP), UNF/UN (examples: 1" x 14, 7/16" x 20, 3/8" UNF, 1-1/16" x 12, M30, M36, M42, etc.).
• Colour: Green.
• Declared recycled content: 100% (Recycled Content Percentage: 100%).
• Typical applications: protection during manufacturing, storage and transport; temporary sealing of threads.
• Mounting: push-fit (press-fit) installation, manual application.
