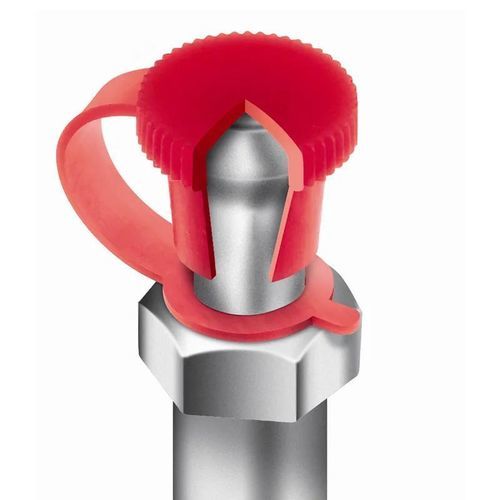

Round cap 10119334

thermoplasticelastomerlow-density polyethylene

Groove-protecting grease caps designed to shield grease fittings from dust, moisture, debris and other contaminants to ensure reliable lubrication and extend equipment life. Designed for fast installation and removal; can also act as a visual lubrication indicator.

Key features

• Protects grease fittings from dust, moisture, dirt and other contaminants.
• Available with or without a removal tab; knurled-head options for improved grip.
• Cost‑effective solution, quick and easy to install and remove.
• Suitable for fluid-transmission applications using grease fittings (machines, equipment, vehicles, etc.).

Variants & options available

• Inner diameters (metric and approximate imperial): 6.0 mm (0.236 in), 6.02 mm (0.237 in), 6.3 mm (0.248 in).
• Colors: Black, Red, Yellow.
• Materials: TPE; thermoplastic elastomer (SEBS); low-density polyethylene (LDPE / PEBD - PELD - PIR).
• Types/finishes: type 1, type 2 (three-directional angle), knurled without tab, variants with tab / different tab lengths.

Technical characteristics / specifications

• Example materials: TPE; LDPE (PEBD - PELD - PIR); SEBS for selected references.
• Colors: Black, Red, Yellow.
• Series references: SRPITPE, SRPI, SR1019.
• Typical diameters (metric): 6.0 mm, 6.02 mm, 6.3 mm (imperial equivalents shown in listings).
• Example tab length (variant): 30.0 mm (1.181 in).
• Example hole diameter for washer: 6.0 mm (0.236 in).
• Example SKUs: 10119334, 10066010, 10105375, 20571528, 20571504, 20571511, 20571498.
• Indicative tariff codes for some variants: 3923509000; 3926909790.
• Recycled-content examples: up to 98% for selected SKUs.
