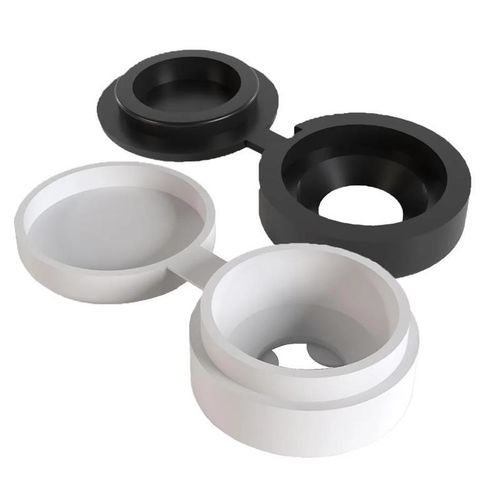

Press-fit cap SR1807

polypropyleneflexibleanti-corrosion

Product Details
Uniscrew caps are designed to provide a flush and seamless appearance. They are connected to a washer by a hinge that folds neatly when inserted into the cap. Easy to install with a push fit. Protects against damage, moisture and corrosion.

• Protects against damage, dirt, moisture and corrosion during storage and shipping.

• Connected to a washer by a hinge that folds neatly when inserted into the cap.

• Used in furniture assembly, automotive interiors, and electrical equipment.

Material: PP
Colour: Black, White
Series Code: SR1807

Technical Specifications / Characteristics

• Material: Polypropylene (PP)
• Colour options: Black, White
• Series Code: SR1807
• Available dimensions (Diameter D): 13.6 mm, 13.7 mm, 17.5 mm (also 0.535 in, 0.539 in, 0.689 in)
• Available heights (H): 4.4 mm, 6.0 mm, 6.5 mm, 8.3 mm (also 0.173 in, 0.236 in, 0.256 in, 0.327 in)
• Head height (h1): 1.0 mm, 1.5 mm, 1.8 mm (also 0.039 in, 0.059 in, 0.071 in)
• Thread Type: 6-12 in (Countersunk); 3.5-6.0 mm (Euroscrew) and 10-12 in (Countersunk); 5.0-6.0 mm (Euroscrew)
• Applications: Furniture assembly, automotive interiors, electrical equipment
• Installation: Push fit
• Protection: Damage, dirt, moisture, corrosion
