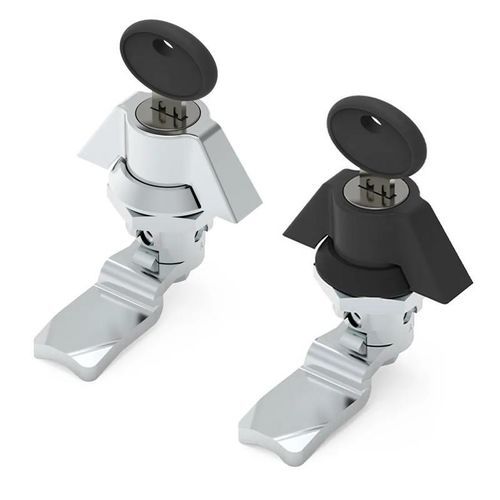

Lock latch SR5541

keyedquarter-turnkey

Product Details
Quarter Turn Latch with Wing Knobs are designed to secure doors, cabinets, enclosures, and other access points. They are operated by twisting the knob 90 degrees, which causes the latch to engage or disengage, making them ideal for applications requiring frequent opening and shutting. Each lock has an outer sealing gasket, an assembly nut and two standard Euro Keys (5333).

It is made to be easy and quick to install, provides extra security, and prevents unauthorized entry whilst still allowing easy access when unlocked. The products include various materials, finishes, and grip ranges utilized in various applications, such as electrical enclosures, furniture cabinets, and equipment covers.

• Material: Zinc Alloy, Die Cast Zinc Alloy
• Colour: Black, Natural, Chrome

Available Variants (Selection)

• Key Type: Euro Key (5333), Keyed Alike
• Full Material: Die Cast Zinc Alloy, Steel
• Colour: Black, Natural, Chrome
• Mounting Hole Width: 0.638 in (16.2 mm)
• Mounting Hole Length: 0.559 in (14.2 mm)
• Knob Height: 0.528 in (13.4 mm)
• Grip Range: 0.63 in (16.0 mm)

Characteristics / Technical Specifications

• Product Type: Quarter Turn Latch with Keyed Wing Knob
• Operation: 90-degree twist to engage/disengage
• Includes: Outer sealing gasket, assembly nut, two Euro Keys (5333)
• Applications: Doors, cabinets, enclosures, electrical enclosures, furniture cabinets, equipment covers
• Material Options: Die Cast Zinc Alloy, Steel
• Colour Options: Black, Natural, Chrome
• Key Types: Euro Key (5333), Keyed Alike
• Mounting Hole Width: 0.638 in (16.2 mm)
• Mounting Hole Length: 0.559 in (14.2 mm)
• Knob Height: 0.528 in (13.4 mm)
• Grip Range: 0.63 in (16.0 mm)
