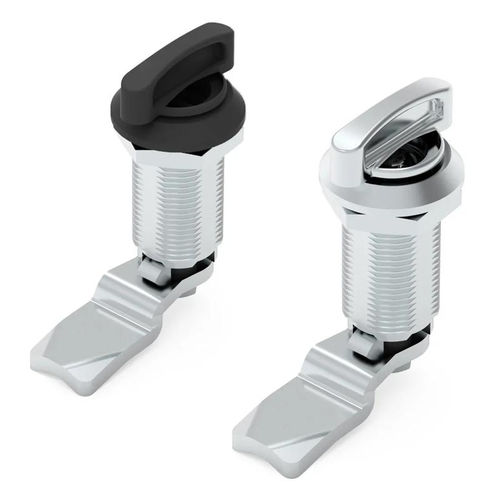

Cam latch SR5523

quarter-turncoatedsteel

Product Details
Quarter Turn Latches with Wing Knobs are available with an extra long housing. These are ideal for sound-proof or isolated doors and are supplied with a rubber gasket for additional sealing properties. They are available in both Chrome Plated and Black Coated Die-cast Zinc and in an array of grip ranges.

Variants (Selection)

• Available in multiple housing heights: 30.0 mm, 40.0 mm, 50.0 mm, 60.0 mm (1.181 in, 1.575 in, 1.969 in, 2.362 in)
• Cam Material: Steel
• Body Material: Die Cast Zinc Alloy
• Finishes: Chrome Plated, Black Coated
• Colours: Natural, Black
• Supplied with rubber gasket for additional sealing
• Ideal for sound-proof or isolated doors

Example Variant Attributes (SKU 20058197)

• Commodity Code: 8301409000
• Colour: Natural
• Cam Material: Steel
• Housing Height: 50.0 mm (1.969 in)
• Cam Length: 45.0 mm (1.772 in)

Example Variant Attributes (SKU 20058098)

• Commodity Code: 8301409000
• Colour: Black
• Cam Material: Steel
• Housing Height: 30.0 mm (1.181 in)
• Cam Length: 45.0 mm (1.772 in)

Technical Specifications / Characteristics

• Product Type: Quarter Turn Latch with Wing Knob
• Material: Die Cast Zinc Alloy (Body), Steel (Cam)
• Finish: Chrome Plated or Black Coated
• Housing Height Options: 30.0 mm, 40.0 mm, 50.0 mm, 60.0 mm
• Cam Length: 45.0 mm (1.772 in)
• Supplied with rubber gasket
• Suitable for thick, sound-proof, or isolated doors
• Available in multiple colours: Natural, Black
