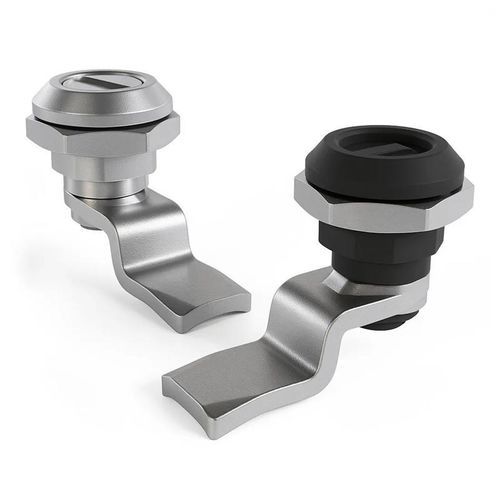

Panel quarter-turn fastener SR5528

cam

Overview
Mini spring-action 1/4-turn locks designed for a wide range of access and fastening applications. Offered in multiple head shapes, grip ranges and formats to suit different requirements. Type 1 is spring-actuated with a die-cast zinc (Zamac) latch and steel cam.

Availability and series

• Series available: SR5528
• General availability: multiple references either in stock or available on request (see variants below)

Example variants (SKU) and key information

• SKU 20080761 — Price range: €7.0213 - €9.8298; Stock: 50 in stock.
• SKU 20080808 — Price range: €7.0213 - €9.8298; Stock: 200 in stock.
• SKU 20120962 — Price range: €7.8105 - €10.9347; Stock: 150 in stock.
• SKU 20121099 — Price range: €7.0213 - €9.8298; Stock: 28 in stock.
• SKU 20121037 — Price range: €7.0213 - €17.5685; Stock: 200 in stock.
• SKU 20121105 — Price range: €1.125 - €1.75; Availability: request lead time.
• SKU 20073992 — Price range: €1.8248 - €2.0275; Availability: request lead time; Finish: Chrome; Cam material: Steel; Housing material: PA; Key type: Slotted key; Grip: 20.5 mm (0.807 in).
• SKU 20073763 — Price range: €1.8248 - €2.0275; Availability: request lead time; Finish: Black powder coat; Cam material: Steel; Housing material: PA; Key type: Square key 6.0 mm; Grip: 13.5 mm (0.531 in).
• SKU 20073909 — Price range: €1.8248 - €2.0275; Availability: request lead time; Finish: Chrome; Cam material: Steel; Housing material: PA; Key type: Triangular key 7.0 mm; Grip: 20.5 mm (0.807 in).
• SKU 20073756 — Price range: €1.8248 - €2.0275; Availability: request lead time; Finish: Chrome; Cam material: Steel; Housing material: PA; Key type: Square key 6.0 mm; Grip: 13.5 mm (0.531 in).
• SKU 20073923 — Price range: €1.4319 - €1.591; Availability: request lead time; Finish: No finish; Cam material: Steel; Housing material: PA; Key type: Triangular key 7.0 mm; Grip: 20.5 mm (0.807 in).
• SKU 20073930 — Price range: €1.8248 - €2.0275; Availability: request lead time; Finish: Chrome; Cam material: Steel; Housing material: PA; Key type: Slotted key; Grip: 13.5 mm (0.531 in).
• SKU 20074005 — Price range: €1.8248 - €2.0275; Availability: request lead time; Finish: Black powder coat; Cam material: Steel; Housing material: PA; Key type: Slotted key; Grip: 20.5 mm (0.807 in).
• SKU 20073978 — Price range: €1.8248 - €2.0275; Availability: request lead time; Finish: Black powder coat; Cam material: Steel; Housing material: PA; Key type: Slotted key; Grip: 19.5 mm (0.768 in).
• Other references listed on the page: additional variants with price ranges from approx. €1.125 to €17.5685 depending on reference, status either "In stock" or "Request lead time" for items not immediately available.

Characteristics / technical specifications

• Type: Mini 1/4-turn lock, Type 1 (spring-actuated)
• Latch material: Zamac (for references indicated with Zamac latch)
• Main materials: Cam in steel; Housing in PA (polyamide) for many variants
• Available finishes: Chrome, Black powder coating, No finish
• Key / actuation types: Slotted key; Square key 6.0 mm; Triangular key 7.0 mm; Screwdriver-actuated options for some variants
• Available grips (examples): 13.5 mm (0.531 in), 19.5 mm (0.768 in), 20.5 mm (0.807 in)
• Referenced series: SR5528

Applications

• Typical applications: small enclosures, access panels, instrument and control panels, electrical cabinets and equipment requiring compact quarter-turn locking solutions
