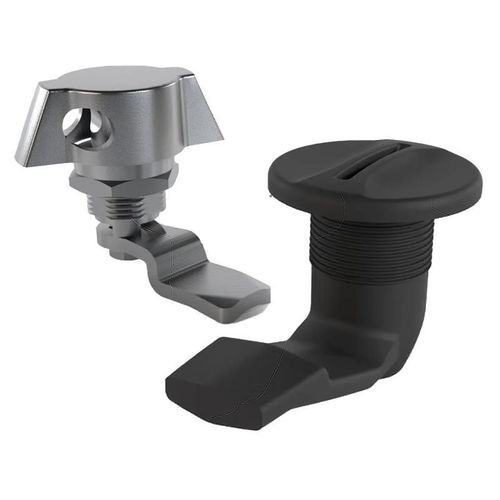

Cam latch SR5522

lockquarter-turnkey

Product Details
Quarter Turn Latch with Wing Knobs are designed to secure doors, cabinets, enclosures, and other access points. They are operated by twisting the knob 90 degrees, which causes the latch to engage or disengage, making them ideal for applications requiring frequent opening and shutting. Each lock comes with an outer sealing gasket and an assembly nut.

It is made to be easy and quick to install by inserting it into the installation hole and tightening the nut. The range of products includes various materials, finishes, and grip ranges that are utilised in various applications, such as electrical enclosures, furniture cabinets, and equipment covers.

• Material: PA and Die Cast Zinc Alloy
• Finishes: Chrome Plate and Black Powder Coating

Available Variants (Selection)

• Cam Lengths: 25.0 mm, 35.0 mm, 40.0 mm, 45.0 mm (also available in inches: 0.984 in, 1.378 in, 1.575 in, 1.772 in)
• Maximum Grip: 8.5 mm, 14.5 mm, 18.5 mm, 24.5 mm, 26.5 mm, 28.5 mm (also available in inches: 0.335 in, 0.571 in, 0.728 in, 0.965 in, 1.043 in, 1.122 in)
• Body Material: Die Cast Zinc Alloy, Nylon
• Finish: Chrome Plated, Black Powder Coating

Example Technical Attributes (from SKUs)

• Cam Length: 40.0 mm (1.575 in)
• Head Height: 4.5 mm (0.177 in) or 10.0 mm (0.394 in)
• Colour: Black
• Commodity Code: 8301300000 or 3926909790
• Grip Range: 24.5 mm (0.965 in), 18.5 mm (0.728 in), 28.5 mm (1.122 in), etc.
• Mounting Hole Length: 22.2 mm (0.874 in)
• Mounting Hole Width: 20.2 mm (0.795 in)
• Cam Material: Stainless Steel (for some variants)
• Key Type: No Key (for some variants)

Characteristics / Technical Specifications

• Product Type: Quarter Turn Latch with Wing Knob
• Operation: 90-degree twist to engage/disengage
• Applications: Doors, cabinets, enclosures, electrical enclosures, furniture cabinets, equipment covers
• Material Options: PA (Polyamide), Die Cast Zinc Alloy, Stainless Steel (cam)
• Finish Options: Chrome Plate, Black Powder Coating
• Grip Range Options: 8.5 mm to 28.5 mm (0.335 in to 1.122 in)
• Cam Length Options: 25.0 mm to 45.0 mm (0.984 in to 1.772 in)
• Mounting Hole: Length 22.2 mm (0.874 in), Width 20.2 mm (0.795 in)
• Colour: Black
• Commodity Codes: 8301300000, 3926909790
• Includes: Outer sealing gasket and assembly nut
