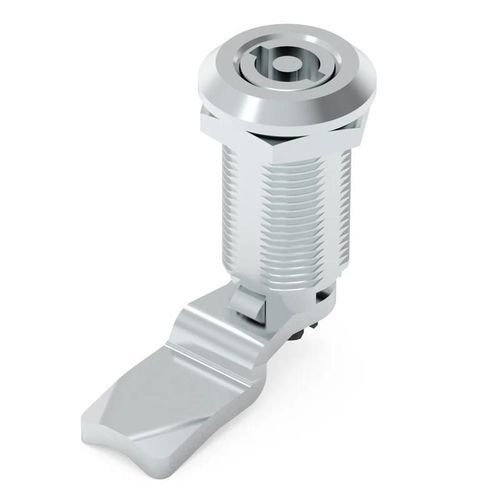

Zamak quarter-turn fastener SR5526

for panelscam

Designed for installation on thick panels and doors (insulated panels, heavy-duty doors), the SR5526 quarter-turn lock provides a sealed closure with a rubber gasket for IP65 protection. Supplied with a 5 mm double-bitted head and manufactured in Zamak with a chrome finish for typical industrial applications.

Main features

• Use: for thick panels and doors such as insulated panels and heavy doors
• Head: 5 mm double-bitted
• Seal: rubber sealing gasket
• Ingress protection: designed for IP65 sealing
• Material: Zamak (zinc alloy)
• Finish: chrome plated
• Series: SR5526

Available SKUs

• 20120535 — Price: €17.5863 - €24.6208 — Availability: Lead time on request
• 20120580 — Price: €19.0365 - €26.6512 — Availability: 15 in stock
• 20120566 — Price: €2.2589 - €3.5138 — Availability: Lead time on request
• 20120498 — Price: €4.1522 - €6.4589 — Availability: 28 in stock
• 20120436 — Price: (see SKU detail) — Availability: Lead time on request
• 20120474 — Price: (see SKU detail) — Availability: Lead time on request
• 20120627 — Price: €3.2011 - €4.9796 — Availability: 39 in stock
• 20120634 — Price: €5.4647 - €7.6506 — Availability: Lead time on request
• 20120702 — Price: €5.2083 - €9.7988 — Availability: 19 in stock
• 20058531 — Price: €4.7982 - €9.0332 — Availability: Lead time on request
• 20058821 — Price: €4.7982 - €9.0332 — Availability: 47 in stock
• 20058579 — Price: €5.2083 - €9.7988 — Availability: 47 in stock
• 20058791 — Price: €3.2034 - €4.9831 — Availability: Lead time on request
• 20058920 — Price: €2.4475 - €3.8073 — Availability: 13 in stock
• 20058517 — Price: €4.4838 - €8.4208 — Availability: 149 in stock
• 20058845 — Price: €5.2083 - €9.7988 — Availability: 40 in stock
• 20058678 — Price: €17.5863 - €24.6208 — Availability: 139 in stock
• 20058777 — Price: €2.6827 - €4.1731 — Availability: 50 in stock
• 20058890 — Price: €4.4838 - €8.4208 — Availability: Lead time on request
• 20058951 — Price: €5.1688 - €8.0403 — Availability: Lead time on request

Characteristics / technical specifications

• Series: SR5526
• Housing and cam material: Zamak (die-cast zinc alloy)
• Finish: chrome plated
• Head: 5 mm double-bitted head
• Sealing: rubber gasket (configured for IP65)
• Typical applications: hatches, covers and thick doors on insulated panels
• Available key types (examples in range): 3.0 mm double-bitted key; 8.0 mm square key; 8.0 mm triangular key
• Cam/tongue length examples in the range: 30.0 mm, 40.0 mm, 44.0 mm, 50.0 mm, 54.0 mm, 64.0 mm, 70.0 mm
