Cam latch SR5518

compressionkeyedsteel

Product Details

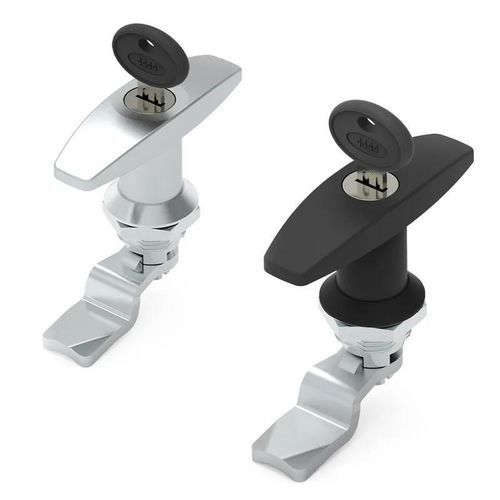

Handle Turn Cam Latches feature a T-shaped handle. They are commonly used in cabinet and furniture applications.

The cam latches compression allows for a more secure seal where IP/NEMA performance is required. This also allows for improved insulation against noise and vibration conditions.

With locking and non-locking options to choose, you are sure to find a solution for your application.

• Lock Type options: Keyed Alike, Keyed to Differ, Keyed CH751, Keyed J327 and Keyless
• Several mounting orientations: Left-hand, Right-hand and Universal
• Screw mount design

Technical Specifications / Characteristics

• Material: Zamak
• Key Type: No Cylinder Key
• Handle Type: T-Handle Lock
• Cam Length: 45.0 mm (1.772 in)
• Handle Length: 74.0 mm or 80.0 mm (2.913 in or 3.15 in)
• Maximum Grip: 8.5 mm, 14.5 mm, 18.5 mm, 24.5 mm, 26.5 mm, 28.5 mm (0.335 in, 0.571 in, 0.728 in, 0.965 in, 1.043 in, 1.122 in)
• Mounting Hole Length: 22.2 mm (0.874 in)
• Commodity Code: 8301409000 or 7907000090 (varies by SKU)
