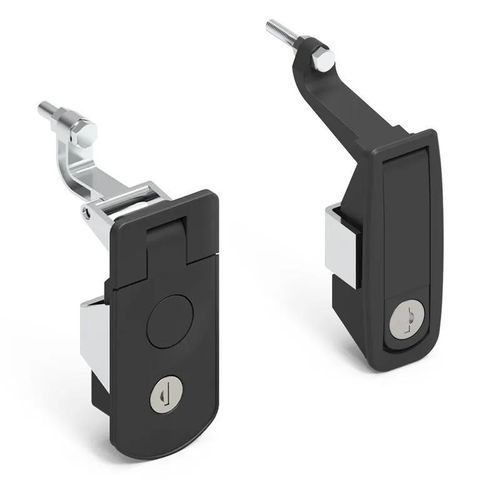

Compression latch SR5090

keyedmetalflush

Overview : Flush recessed compression lever latch designed to provide reliable compression of the gasket and easy operation. Suitable for securing doors, cabinets and panels; can be mounted for left- or right-hand use.

Main features and options :

• Trigger type: Flush
• Compatible panel thickness: ≤ 2 mm
• Orientation: left- or right-hand mounting
• Color: Black
• Locking options: Keyed Alike (5333), Keyed Different, No Cylinder (No). Lockable versions supplied with 2 keys per lock

Dimensional variants and ranges :

• Grip (available ranges):
  • 0 - 24.0 mm
  • 36.0 - 48.0 mm
  • 51.0 - 63.0 mm
• Mounting hole size ranges:
  • 25.0 - 86.0 mm
  • 34.5 - 89.5 mm
• Face length (examples):
  • 89.0 mm
  • 93.0 mm
  • 110.0 mm
• Face width (examples):
  • 35.0 mm
  • 50.0 mm
• Total length (examples):
  • 109.0 mm
  • 125.0 mm

Technical characteristics / specifications :

• Function: Recessed compression lever latch providing adjustable compression of the seal
• Trigger: Flush
• Max panel thickness: suitable up to 2 mm
• Locking options: Keyed Alike (5333), Keyed Different, No Cylinder (No). Lockable versions delivered with 2 keys per lock
• Color: Black
• Typical applications: doors, cabinets, access panels
• Dimensional variants: grip ranges, mounting hole ranges, face length/width and total length as listed above
• Series / reference: SR5090
