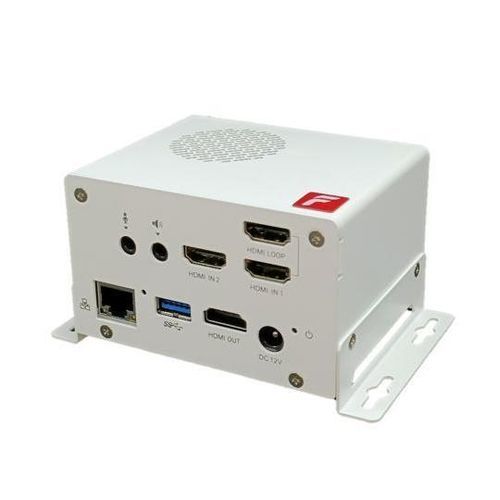

Box computer VAI-APLembeddedIntel® Atom x7-E3950HDMI
Add to favorites
Compare this product
Characteristics
- Type
- box
- Configuration
- embedded
- Processor
- Intel® Atom x7-E3950
- Ports
- HDMI, USB 3.0, RJ45
- Data storage
- eMMC 32 GB
- Size
- compact
- Other characteristics
- GPU
- Memory
- 4 GB
Description
Overview
Key features
Media capability
Technical specifications
- Compact industrial computer VAI-APL equipped with Intel Atom X7-E3950 (Apollo Lake) SoC, designed for embedded applications requiring multiple HDMI inputs and a wide operating temperature range.
Key features
- Onboard LPDDR4 1866MHz 4 GB; eMMC 5.1 32 GB
- Multiple display support via Intel HD Graphics 505 (Gen.9): 1 x HDMI Out 1.4; 2 x HDMI In; 1 x HDMI Loop
- Supports HDMI input/loop and hardware video encode/decode
- Wide operating temperature: -10°C to 70°C (with fan); 12 VDC input; power consumption 25 W
- Interfaces: 1 x Intel I210 GbE RJ45; 1 x USB 3.0 Type A; audio: 1 x Line Out; 1 x MIC In
- Dimensions: 95.2 x 78.1 x 57 mm; Weight: 880 g; MTBF: 516,789 hours
- Regulatory: CE, FCC
Media capability
- Encode: AVC 8-bit 4:2:0; MJPEG 8-bit 4:2:0 / 4:2:2 / 4:4:4; HEVC 8-bit and 10-bit 4:2:0
- Decode: AVC, MPEG2, VC1, MJPEG, VP8, HEVC (8-bit / 10-bit), VP9 — primarily 8-bit 4:2:0 unless specified
Technical specifications
- Model: VAI-APL
- CPU: Intel Atom X7-E3950 (Apollo Lake)
- GPU: Intel® HD Graphics 500 / 505 (Gen.9)
- Memory: Onboard LPDDR4 1866MHz 4 GB
- Storage: eMMC 5.1 32 GB
- Display I/O: 1 x HDMI Out 1.4; 2 x HDMI In; 1 x HDMI Loop
- Ethernet: 1 x Intel I210 GbE RJ45
- USB: 1 x Type A USB 3.0
- Audio: 1 x Line Out; 1 x MIC In
- Power: 12 VDC input; DC jack; consumption 25 W
- Environmental: Operating -10°C to 70°C (with fan); Storage -40°C to 80°C; Humidity 5–90% non-condensing
- Dimensions & Weight: 95.2 x 78.1 x 57 mm; 880 g
- MTBF: 516,789 hours
- Certifications: CE, FCC
