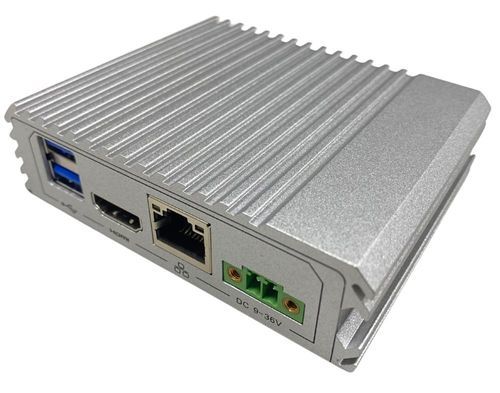

Edge AI computer EAC-10N1

artificial intelligenceAIembedded

Overview

• Compact AI edge computer powered by NVIDIA® Jetson Orin™ Nano for embedded inference and machine vision
• Multiple I/O for data acquisition: Gigabit LAN, USB 3.2, serial ports, HDMI, MIPI CSI-2
• Wide 9–36VDC input and flexible mounting: DIN-rail, wall mount, VESA
• Onboard 4/8 GB LPDDR5 memory and M.2 NVMe storage support for local processing

Key specifications
System:
Model name: EAC-10N1 (eNVP-JON-UC)
Processor / CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Graphic Controller / GPU: 1024/512-core NVIDIA Ampere architecture GPU with 32/16 Tensor Cores
Memory: Onboard 4/8GB 64/128-bit LPDDR5
Real Time Clock: Supported
Operating System (OS): Linux (NVIDIA Jetpack 5.1.2 and above)
Display: 1 x HDMI 2.0-Out
NVMe: Supported
M.2 Key M: 1 x M.2 Key-M 2242, support NVMe
Ethernet: 1 x GbE LAN, RJ45
Serial Port: 2 x RS-232/485 switchable
USB: 2 x USB 3.2 Gen1, Type-A; 1 x MicroUSB for console
Indicator / LED: 1 x LED indicator (Power)
Other Interface: 1 x MIPI CSI-2 with FPC connector
Power Input: 9-36VDC
Power Consumption: TBD
Power Interface: 2-pin Terminal Block
Dimension: 94.6 x 76 x 28.55 mm
Weight: 0.3 kg
Mounting/Installation: Din Rail, Wall Mount, VESA
Operating Temp.: TBD
Storage Temp.: -40 °C ~ 85 °C (-40 °F ~ 176 °F)
Humidity: 10% ~ 95% relative humidity, non-condensing
EMC / Regulations: CE, FCC
WatchDog Timer: --

Applications

• Edge AI inference for industrial automation and machine vision
• On-site data collection and preprocessing in constrained environments
• OEM integration via DIN-rail, wall or VESA mounting
