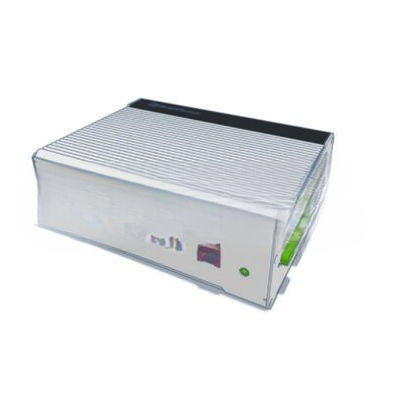

Edge AI computer EAC-70Nartificial intelligenceAIbox
Add to favorites
Compare this product
Characteristics
- Type
- box, Edge AI, artificial intelligence, AI
- Configuration
- wall-mounted
- Processor
- NVIDIA® Jetson Orin™ Nano, ARM® Cortex A78AE
- Ports
- RS-422, HDMI, RS-232, RS-485, USB 3.0, M.2, gigabit Ethernet, USB Type-C, micro USB, SIM card, 16x PCI Express, CAN bus, PCI Express
- Operating system
- Linux
- Other characteristics
- GPU
- Memory
- 32 GB, 64 GB
Description
Overview
Key features
Technical specifications
Interfaces & expansion
Power & environmental
Certifications
- Preliminary release
- Powered by NVIDIA® Jetson AGX Orin™ module (8/12-core Arm® Cortex®-A78AE)
- Designed for industrial edge AI computing and data collection
- Multiple I/O: 10GbE, GbE, USB 3.2, serial ports, CAN-FD, HDMI
- Wide-range DC input 9–36 V
Key features
- Model: EAC-70N (Preliminary)
- Memory: 32/64 GB 256-bit LPDDR5 DRAM
- OS: Linux (NVIDIA Jetpack 5.1.2 and above)
- M.2 expansion: Key-M 2280 (NVMe), Key-B 3052, Key-E 2230
- PCIe: 1 x PCIe x16 connector (wired x8)
- SIM slot; 8 alarm I/O; Power LED indicator
Technical specifications
- CPU: NVIDIA 8/12-core Arm® Cortex®-A78AE v8.2
- Display: 1 x HDMI 2.0-Out
- Ethernet: 1 x 10GbE RJ45, 2 x GbE RJ45
- USB: 4 x USB 3.2 Gen1 Type-A, 1 x USB Type-C, 1 x MicroUSB (console)
- Serial: 2 x RS-232/422/485 (switchable, terminal block)
- CAN bus: 1 x CAN (terminal block)
- Alarm I/O: 8; Indicator: 1 x Power LED
Interfaces & expansion
- M.2 Key-M 2280 (NVMe) for storage
- M.2 Key-B 3052 and Key-E 2230 for cellular/Wi‑Fi modules
- MIPI CSI-2 connector for camera input
- PCIe x16 slot (electrically x8) for acceleration cards
Power & environmental
- Power input: 9–36 VDC via 3-pin terminal block
- Mounting: Wall mount
- Operating temp: -20 °C to 60 °C (-4 °F to 140 °F)
- Storage temp: -40 °C to 85 °C (-40 °F to 176 °F)
- Humidity: 10%–95% RH, non‑condensing
Certifications
- CE, FCC
