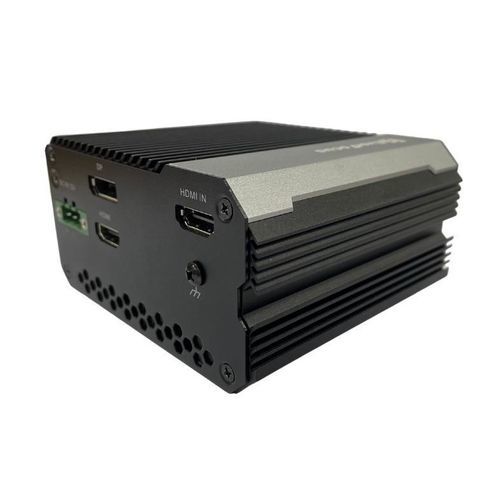

EDGE computer eNVP-JNX-UBCP

artificial intelligenceboxwall-mounted

Product
Industrial AI edge box based on NVIDIA® Jetson Xavier™ NX with onboard 8GB LPDDR4x and integrated HDMI input capture card for 4K@60 video ingestion.

Key Features

• [Project-Based]
• Powered by NVIDIA® Jetson Xavier™ NX
• Onboard 8GB 128-bit LPDDR4x
• Multiple I/O for data acquisition: 2 x GbE LAN, USB 3.1, serial ports, CAN, alarm I/O
• Supports 1 channel HDMI input up to 4K2K@60
• Wide operating temperature range: -20°C to 50°C

Specifications
System
Model name: eNVP-JNX-UBCP
Processor / CPU: 6-core NVIDIA Carmel Arm® v8.2 64-bit CPU
Graphic Controller / GPU: 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
Memory: 8GB 128-bit LPDDR4x (onboard)
Real Time Clock: Supported
Cellular: Supported
Operating System (OS): Linux (NVIDIA Jetpack 5.1 and above)

Video / Recording
Display: 1 x HDMI 2.0 output; 1 x HDMI input up to 4K2K@60

Storage
SATA: --
eMMC: 16GB eMMC (onboard)
NVMe: Supported
SD Card Slot: 1 x MicroSD slot

Other I/O
Ethernet: 2 x GbE LAN (RJ45)
Serial Port: 3 x COM (UART x 2, RS485 x 1)
CAN bus: 1 x CAN bus
USB: 3 x USB 3.1 (Type-A); 1 x USB 2.0 (Type-A); 1 x MicroUSB for console
GPIO: 6 x GPIO
Indicator / LED: 3 x LEDs (Power, SD Card, SSD)

Expansion
Mini PCIe: --
M.2 Key E: 1 x M.2 Key E 3042/3052 socket
SIM Slot: 1 x SIM slot

Power
Power Input: 12VDC
Power Consumption: Max. 25W
Power Interface: 3-pin Terminal block

Mechanical & Environment
Dimension: 110 x 102 x 57mm
Weight: TBD
Mounting/Installation: Din Rail, Wall Mount
Operating Temp.: -20°C ~ 50°C (-4°F ~ 122°F)
Storage Temp.: -40°C ~ 85°C (-40°F ~ 176°F)
Humidity: 10% ~ 95% relative humidity, non-condensing
EMC / Regulations: CE, FCC
WatchDog Timer: --

***All specifications are subject to change.
