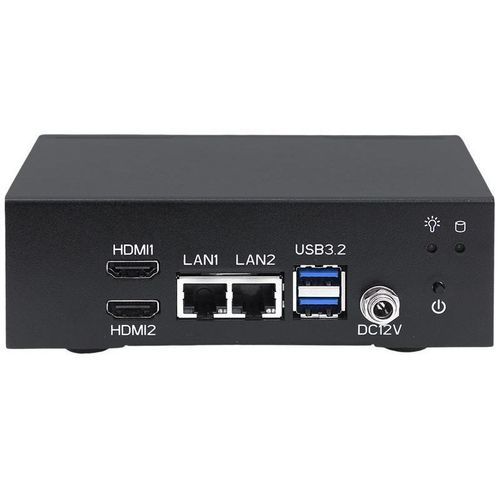

Edge AI computer IES-12A1boxembeddedDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- box, Edge AI
- Configuration
- embedded, DIN rail
- Processor
- Intel® Celeron®, quad-core, dual-core
- Ports
- RS-485, HDMI, RS-232, USB 2.0, USB 3.0, gigabit Ethernet, RJ45, RS-422, SATA, Mini PCIe, M.2 Key E
- Data storage
- eMMC 32 GB, eMMC 64GB
- Operating system
- Linux, Linux® Ubuntu™, Windows 10, Windows 10 IoT Enterprise
- Other characteristics
- fanless
- Memory
- 4 GB
Description
Overview
Technical specifications
- Fanless industrial embedded system with Intel® Celeron® CPU options
- Onboard 4GB LPDDR4 memory and onboard eMMC storage up to 64GB
- Dual HDMI 2.0 supporting up to 4K@60Hz
- Dual RJ45 GbE LAN and multiple serial interfaces for industrial connectivity
- Expansion: 1 x mPCIe, 1 x M.2 Key E 2230 for Intel Wi‑Fi 6E module (optional)
- TPM 2.0, AMI UEFI BIOS and multi-OS support (Windows 10 Full, Windows IoT, Linux)
Technical specifications
- Model name: IES-12A1 (eIVP-AEHL-AI)
- Processor / CPU: SKU 1: Intel® Celeron® N6210, Dual-Core, 1.5M Cache, 1.2GHz (2.6GHz), 6.5W; SKU 2: Intel® Celeron® J6412, Quad-Core, 1.5M Cache, 2GHz (2.6GHz), 10W
- Graphics: Intel® Gen10 UHD Graphics
- Memory: 4GB onboard LPDDR4
- Storage: Onboard eMMC SKU 1: 32GB; SKU 2: 64GB; SATA and power cable (optional)
- Display: 2 x HDMI 2.0 (up to 4K@60Hz)
- Ethernet: 2 x GbE LAN (RJ45)
- Serial: 2 x COM (RS232/422/485)
- USB: 2 x USB 3.2 Gen1 (Type-A); 2 x USB 2.0 (Type-A)
- GPIO: 4-bit GPIO (reserved)
- Buttons / Indicators: 1 x Power On; 2 x LEDs (Power, Storage)
- Antenna holes: 2
- Expansion slots: 1 x mPCIe; 1 x M.2 Key E 2230 socket for Intel Wi‑Fi 6E module (optional)
- Power input: 12 VDC via DC jack (power adapter optional)
- Dimensions: 140 x 90 x 45 mm
- Mounting: DIN-rail mount kits (optional)
- Operating temperature: 0 to 60 °C
- Security / BIOS: TPM 2.0; AMI UEFI BIOS
- Supported OS: Windows 10 Full, Windows IoT, Kernel 4.8, Ubuntu 22.04
- Regulatory: RoHS
- All specifications are subject to change.
