Security gateway SPG-SCM4
industrialtelemetryIoT

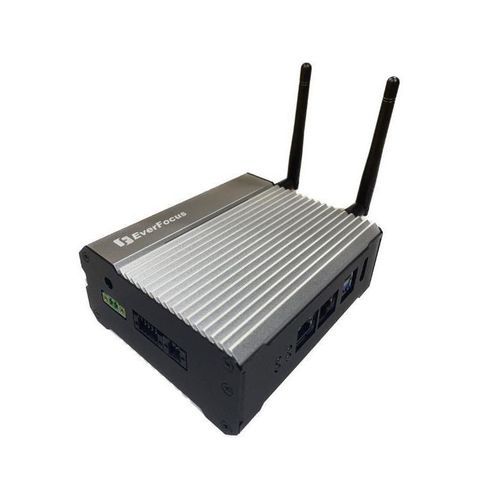

Security gateway - SPG-SCM4 - EverFocus Electronics Corporation - industrial / telemetry / IoT
Security gateway - SPG-SCM4 - EverFocus Electronics Corporation - industrial / telemetry / IoT
Add to favorites
Compare this product

Characteristics

Type
industrial, IoT, IoT Edge, security, telemetry
Network
Ethernet, USB, WiFi, RS-485, RS-232, cellular, Bluetooth, CAN
Other characteristics
DIN rail, protocol converter, multi-protocol, Linux, wall-mounted, serial device server, EDGE, Raspberry Pi

Description

Overview
  • [Preliminary release]
  • Industrial protocol gateway based on Broadcom BCM2711 quad-core Cortex‑A72 @1.5GHz
  • Onboard DDR4L 1GB and eMMC 8GB (options: 2/4GB RAM, 16GB eMMC)
  • Rich I/O: 2×RS‑232/485 (user selectable), 1×CAN‑FD, isolated DI/DO, 2×GbE, 2×USB 3.2 Gen1, HDMI 2.0
  • Wide power input 9–36 VDC and operating temperature -20 °C to 70 °C


Key specifications
  • Model: SPG-SCM4
  • Processor: Broadcom BCM2711 Quad‑core Cortex‑A72 1.5GHz
  • Memory / Storage: Onboard DDR4L 1GB; eMMC 8GB (variants: 2/4GB RAM, 16GB eMMC)
  • Display: 1×HDMI 2.0
  • Ethernet: 2×Gigabit LAN (RJ‑45)
  • Serial: 2×RS‑232/485 (user selectable)
  • CAN: 1×CAN‑FD (terminal block)
  • USB: 2×USB 3.2 Gen1 Type‑A; 1×USB 2.0 OTG
  • DIO: 1×isolated DI; 1×isolated DO
  • Indicators: 3×user‑definable LEDs
  • Expansion: M.2 Key‑B 2280/3054 (USB signaling)
  • OS Support: Raspberry Pi OS
  • Power Input: 9–36 VDC
  • Dimensions: 130 × 122 × 57 mm; Weight: <600 g
  • Mounting: DIN rail, wall mount
  • Operating Temp: -20 °C to 70 °C; Storage Temp: -40 °C to 85 °C
  • Humidity: 10%–95% RH, non‑condensing
  • Certifications: CE, FCC
  • SIM: 1×SIM card slot
  • Wireless: Wi‑Fi 802.11 b/g/n/ac, BT 5.0 (depends on CM4 SOM)
  • Security: TPM 2.0; RTC: Yes


Interfaces & expansion
  • 2×RS‑232/485 (switchable) for legacy device connections and serial field equipment
  • 1×CAN‑FD via terminal block for vehicle/industrial bus integration
  • M.2 Key‑B slot for cellular module (B‑Key 2280/3054, USB signaling) and 1×SIM slot
  • 2×GbE and 2×USB Type‑A for networking and peripheral connectivity; HDMI 2.0 for local display


Applications
  • Protocol conversion, edge computing and IoT gateway for industrial automation, telemetry, smart facilities and machine-to-machine communications


Ordering & variants
  • Available variants for memory and storage; wireless and cellular options depend on installed CM4 SOM
  • Preliminary specifications — final product features, power consumption and certifications subject to change
