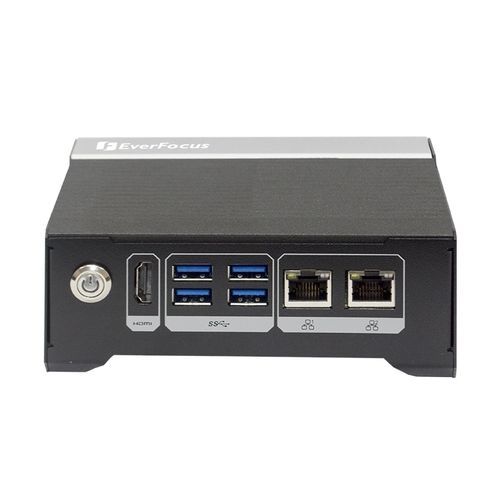

Box computer EAC-30N1

wall-mountedDIN railVESA mounting

Product Name
EAC-30N1 (eNVP-JON-AI) - NVIDIA® Jetson Orin™ Nano AI Box

Overview

• Designed for embedded edge AI applications and data collection
• Powered by NVIDIA® Jetson Orin™ Nano
• Onboard 4GB / 8GB 128-bit LPDDR5 memory options
• Wide operating temperature range: -20 °C to 60 °C

Key Features

• CPU/GPU: NVIDIA® Jetson Orin™ NX 6-core Arm® Cortex®-A78AE CPU with 1024/512-core Ampere GPU and 32/16 Tensor Cores
• Storage: NVMe support via M.2 Key M 2280; MicroSD slot; M.2 Key B and Key E sockets
• I/O: 2x GbE LAN, 4x USB 3.1 Type-A, 1x COM (RS485), 1x CAN FD, HDMI 2.0 Out
• Connectivity: SIM slot, 4x external antenna holes (SMA)
• Power: 9–36 VDC input, max. 25 W (with fan)
• Mounting: DIN rail, wall mount, VESA

Technical Specifications

• Model: EAC-30N1 (eNVP-JON-AI)
• Memory: 4GB / 8GB 128-bit LPDDR5 (onboard)
• OS: Linux (NVIDIA JetPack 5.1.1 by default)
• Video: 1 x HDMI 2.0-Out
• Storage Interfaces: 1 x M.2 Key M 2280 (NVMe), 1 x MicroSD
• Other I/O: 2 x GbE (RJ45), 1 x COM (RS485, 5-pin terminal), 1 x CAN FD (5-pin terminal), 4 x USB 3.1, 1 x MicroUSB (console)
• Power Interface: 3-pin terminal block
• Dimensions & Weight: 136 x 110 x 57 mm; 2.1 kg
• Operating Temperature: -20 °C to 60 °C
• Certifications: CE, FCC

Note
All specifications are subject to change.
