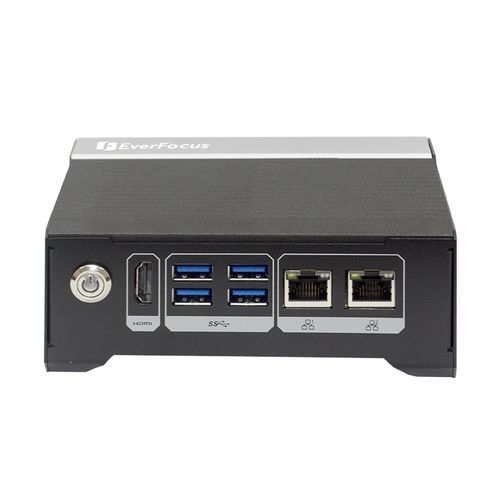

EDGE computer EAC-30N3Edge AIartificial intelligenceAI
Add to favorites
Compare this product
Characteristics
- Type
- box, Edge AI, EDGE, GPU, artificial intelligence, AI, AI Inference
- Configuration
- wall-mounted, DIN rail, VESA mounting
- Processor
- NVIDIA® Jetson Orin™ NX
- Ports
- HDMI, RS-485, Ethernet, USB 3.1, micro USB, micro SD card, M.2
- Operating system
- Linux
- Size
- compact
- Domain
- video surveillance, for IoT applications, for robotic applications, for machine vision systems, for predictive maintenance
- Other characteristics
- SSD, wireless, GPU
- Memory
- 8 GB, 16 GB
Description
Overview
Technical specifications
I/O & expansion
Power, mechanical & environment
Typical industrial applications
- Compact AI edge computing box powered by NVIDIA® Jetson Orin™ NX
- Onboard 8GB or 16GB 128-bit LPDDR5 memory
- Rich I/O for industrial data collection: 2 x GbE, USB 3.1, COM (RS485), CAN‑FD, HDMI 2.0-Out
- Wide operating temperature range −20 °C to 50 °C; 9–36 VDC power input; max 25 W (with fan)
Technical specifications
- Model: EAC-30N3 (eNVP-JOX-AI)
- Processor: NVIDIA® Jetson Orin™ NX (8/6‑core Arm® Cortex®‑A78AE v8.2 64‑bit)
- GPU: 1024‑core NVIDIA Ampere architecture GPU with 32 Tensor Cores
- Memory: 8GB or 16GB onboard 128‑bit LPDDR5
- OS: Linux (NVIDIA JetPack 5.1.1 by default)
- Display: 1 x HDMI 2.0‑Out
- Storage: NVMe supported (1 x M.2 Key M 2280); 1 x MicroSD slot
I/O & expansion
- Ethernet: 2 x GbE LAN (RJ45)
- USB: 4 x USB 3.1 Type‑A; 1 x MicroUSB (console)
- Serial: 1 x COM (RS485, 5‑pin terminal)
- CAN: 1 x CAN FD (5‑pin terminal)
- Wireless/antennas: 4 x SMA‑Male external antenna holes
- M.2 & slots: 1 x M.2 Key M 2280 (NVMe), 1 x M.2 Key B 3052, 1 x M.2 Key E 2230, 1 x SIM slot
Power, mechanical & environment
- Power input: 9 ~ 36 VDC; power interface: 3‑pin terminal block
- Power consumption: Max. 25 W (with fan)
- Dimensions: 136 x 110 x 57 mm; Weight: 2.1 kg
- Mounting: DIN‑rail, wall mount, VESA
- Operating temperature: -20 °C to 50 °C; Storage: -40 °C to 85 °C
- Humidity: 10% to 95% RH, non‑condensing; Certifications: CE, FCC
Typical industrial applications
- Edge AI inference for machine vision and inspection
- Autonomous machines and AMR/robotics control
- Smart surveillance and video analytics
- Predictive maintenance and IIoT data aggregation
