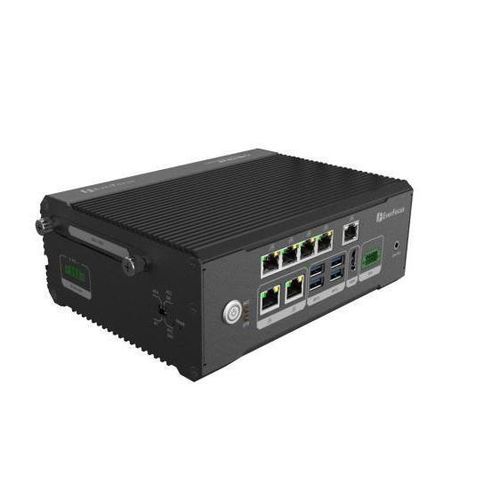

Box computer EAC-50N3AIwall-mountedDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- box, AI
- Configuration
- wall-mounted, DIN rail
- Processor
- NVIDIA® Jetson Orin™ NX
- Ports
- HDMI, LPDDR5, RS-485, USB 3.1, micro USB, SIM card, Mini PCIe, M.2
- Other characteristics
- wireless
Description
Product overview
Key specifications
Expansion & power
Mechanical & environment
Certifications & compliance
- [Preliminary Release]
- Powered by NVIDIA® Jetson Orin™ NX AI accelerator
- Onboard 8GB or 16GB 128-bit LPDDR5 memory
- Multiple I/O for data collection: GbE with PD/PSE, USB 3.1, RS-485, CAN-FD
- Wide operating temperature: -20 °C to 60 °C
Key specifications
- Model name: EAC-50N3
- AI accelerator / NPU: NVIDIA® Jetson Orin™ NX
- Processor / CPU: NVIDIA 6/8-core Arm® Cortex®-A78AE v8.2
- Memory (onboard): 8GB or 16GB, 128-bit LPDDR5
- Real Time Clock: Yes
- Display output: 1 × HDMI 2.0-Out
- Ethernet ports: 4 × GbE (PSE up to 15W), 1 × GbE, 1 × GbE (PD 60W), 1 × GbE (PSE 30W)
- Serial ports: 2 × RS-485 (DB9)
- CAN: 1 × CAN-FD (DB9)
- USB: 4 × USB 3.1 Type-A; 1 × Micro USB (console)
- DIO: 8 × Alarm I/O; LEDs: 4 (Power)
Expansion & power
- Mini PCIe / wireless: 1 × M.2 E-Key 2230; 1 × M.2 B-Key 3052
- SIM slot: 1 × SIM card slot
- Power input: 9–48 VDC
- Power consumption: 45W max (with fan)
- Power connector: 3-pin terminal block
Mechanical & environment
- Dimensions: 195 × 154.8 × 75 mm
- Weight: 2.4 kg
- Mounting: DIN rail, wall mount, VESA
- Operating temperature: -20 °C to 60 °C
- Storage temperature: -40 °C to 85 °C
- Humidity: 10%–95% RH, non-condensing
Certifications & compliance
- EMC / Regulations: CE, FCC
