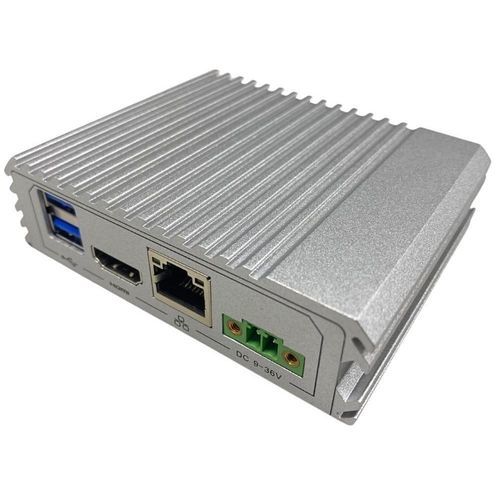

Box computer EAC-10N3Edge AIGPUembedded
Add to favorites
Compare this product
Characteristics
- Type
- box, Edge AI, GPU
- Configuration
- embedded, wall-mounted, DIN rail, VESA mounting
- Processor
- ARM® Cortex A78AE, octa-core
- Ports
- HDMI, RS-232, RS-485, USB 3.0, gigabit Ethernet, RJ45, micro USB, M.2, NVMe
- Operating system
- Linux
- Other characteristics
- GPU-Based, with AI Acceleration module
- Memory
- 8 GB, 16 GB
Description
Overview
Key features
Technical specifications
- [Preliminary Release]
- Powered by NVIDIA® Jetson Orin™ NX with 6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
- Linux OS (NVIDIA Jetpack 5.1.2 and above)
- Multiple I/O: 1 x GbE LAN, 2 x USB 3.2 Gen1 Type-A, 1 x MicroUSB (console), 2 x RS-232/485 switchable, 1 x HDMI 2.0-Out, 1 x MIPI CSI-2 with FPC
- Storage: NVMe supported; 1 x M.2 Key-M 2242 (NVMe); 1 x M.2 Key-E 2230
- Wide power input 9–36VDC via 2-pin terminal block
- Compact form factor with Din Rail, Wall Mount and VESA installation options
- Operating and storage ranges suitable for embedded/industrial deployments; CE and FCC certified
Key features
- Edge AI computing powered by NVIDIA® Jetson Orin™ NX
- Flexible I/O set for sensor integration and data collection
- Local storage and expansion via NVMe and M.2 slots
- Wide voltage input for vehicle and industrial power systems
- Multiple mounting methods for varied installation environments
Technical specifications
- Model name: EAC-10N3 (eNVP-JOX-UC)
- Processor / CPU: 6/8-core Arm® Cortex®-A78AE v8.2 64-bit
- Main memory: Onboard 8/16GB 128-bit LPDDR5
- OS: Linux (NVIDIA Jetpack 5.1.2 and above)
- Display: 1 x HDMI 2.0-Out
- NVMe: Supported; M.2 Key-M: 1 x 2242 (NVMe)
- M.2 Key-E: 1 x 2230
- Ethernet: 1 x GbE LAN (RJ45)
- Serial: 2 x RS-232/485 switchable
- USB: 2 x USB 3.2 Gen1 Type-A; 1 x MicroUSB (console)
- MIPI CSI-2: 1 with FPC connector
- Power input: 9–36VDC via 2-pin terminal block
- Power consumption: TBD
- Dimensions: 94.6 x 76 x 28.55 mm
- Weight: 0.3 kg
- Mounting/installation: Din Rail, Wall Mount, VESA
- Operating temperature: -20 °C to 60 °C; Storage temperature: -40 °C to 85 °C
- Humidity: 10%–95% relative humidity, non-condensing
- Certifications: CE, FCC
