Spray nozzle 6006482 NF

cleaningcoolingfor liquids

Description

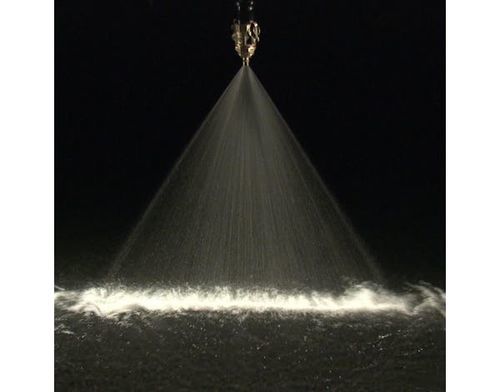

BETE's NF fan spray nozzle delivers a high-impact, flat fan spray with evenly tapered edges to enable overlapping coverage. The one-piece construction contains no internal parts, simplifying maintenance and improving reliability. NF nozzles create medium to large droplets forming a thin, sheet-like fan pattern. All 1/4 NPT models are shown below.

Applications

• Coating
• Cooling
• Parts & Conveyor Washing
• Foam Control
• High-Impact Washing

Advantages

• High-impact spray
• Uniform distribution with tapered edges for overlapping sprays
• Durable one-piece construction with no internal parts

Materials

• Brass

How Flat Fan Nozzles Work
As fluid exits the nozzle's elliptical orifice it is formed into a thin, flat sheet, producing a fan-like spray pattern with controlled droplet size.

Dimensions & Performance — Key Data (1/4 NPT models)
Pipe Size Dimensions: 1/4"
A (in/mm): 1.06" / 27.0 mm
B (in/mm): 0.56" / 14.3 mm
Wt (oz/g) Metal: 1.50 oz / 42.5 g
Inlet Connection: 1/4 NPT
Spray Angles: 30°, 65°, 80°, 120°

Performance Group — K Factor 0.0791 (models: 6039856, 6044390, 6020398, 6027632)
K Factor: 0.0791
Flow Rate (GPM): 5 PSI = 0.18; 10 PSI = 0.25; 15 PSI = 0.31; 20 PSI = 0.35; 30 PSI = 0.43; 40 PSI = 0.50; 60 PSI = 0.61; 80 PSI = 0.71; 100 PSI = 0.79
Equivalent Orifice Dia: 0.057 in

Performance Group — K Factor 0.158 (models: 6003572, 6005653, 6009320, 6006482)
K Factor: 0.158
Flow Rate (GPM): 5 PSI = 0.35; 10 PSI = 0.50; 15 PSI = 0.61; 20 PSI = 0.71; 30 PSI = 0.87; 40 PSI = 1.00; 60 PSI = 1.22; 80 PSI = 1.41; 100 PSI = 1.58
Equivalent Orifice Dia: 0.080 in

Performance Group — K Factor 0.316 (models: 6020542, 6003868, 6009566, 6005313)
K Factor: 0.316
Flow Rate (GPM): 5 PSI = 0.71; 10 PSI = 1.00; 15 PSI = 1.22; 20 PSI = 1.41; 30 PSI = 1.73; 40 PSI = 2.00; 60 PSI = 2.45; 80 PSI = 2.83; 100 PSI = 3.16
Equivalent Orifice Dia: 0.109 in

Performance Group — K Factor 0.474 (models: 6013112, 6008836, 6005921, 6003113)
K Factor: 0.474
Flow Rate (GPM): 5 PSI = 1.06; 10 PSI = 1.50; 15 PSI = 1.84; 20 PSI = 2.12; 30 PSI = 2.60; 40 PSI = 3.00; 60 PSI = 3.67; 80 PSI = 4.24; 100 PSI = 4.74
Equivalent Orifice Dia: 0.141 in

Performance Group — K Factor 0.632 (models: 6004735, 6010893, 6009858, 6014763)
K Factor: 0.632
Flow Rate (GPM): 5 PSI = 1.41; 10 PSI = 2.00; 15 PSI = 2.45; 20 PSI = 2.83; 30 PSI = 3.46; 40 PSI = 4.00; 60 PSI = 4.90; 80 PSI = 5.66; 100 PSI = 6.32
Equivalent Orifice Dia: 0.156 in

Performance Group — K Factor 0.791 (models: 6013265, 6014774, 6004072, 6010699)
K Factor: 0.791
Flow Rate (GPM): 5 PSI = 1.77; 10 PSI = 2.50; 15 PSI = 3.06; 20 PSI = 3.54; 30 PSI = 4.33; 40 PSI = 5.00; 60 PSI = 6.12; 80 PSI = 7.07; 100 PSI = 7.91
Equivalent Orifice Dia (mm): 2.03 mm

Performance Group — Higher K Factors (L/min tables shown on page)
Additional model groups are provided on the product page with flow rates in L/min and equivalent mm orifice diameters for higher-capacity variants. Refer to the model-specific tables for L/min values and corresponding equivalent orifice diameters.

Specifications / Technical data

• Brand: BETE
• Series: NF series
• Product SKU (site): P6039856
• Typical model examples: 6039856, 6044390, 6020398, 6027632 (various spray angles and K factors available)
• Inlet Connection: 1/4 NPT
• Materials: Brass (standard series)
• Spray Angles Available: 30°, 65°, 80°, 120°
• Construction: One-piece, no internal parts
• Typical Weight (metal): ~1.50 oz (42.5 g) for 1/4 NPT variants
• K Factors / Flow Ranges: Multiple K factors offered (examples include 0.0791, 0.158, 0.316, 0.474, 0.632, 0.791, etc.) with flow rates tabulated across pressures from 5–100 PSI (or equivalent L/min values)
• Spray Characteristics: Medium to large droplets forming a thin sheet-like fan pattern; tapered edges for overlapping spray coverage
