Tank nozzle Model 6193685 HydroClaw® (HC)

for liquidsspraycleaning

Overview
This FDA-compliant, clog-resistant static tank cleaning nozzle delivers a uniform 360° spray and permits particle passage up to 1/4" (6.4 mm). Designed for compact openings, the HydroClaw® (HC) is available with threaded or clip-on tube connections and provides high flow at low pressure for effective CIP operation.

Applications

• Effectively and efficiently cleans:
• Fermentation tanks
• Bright beer tanks and kettles
• Barrels, totes and drums

Advantages

• Large free passage (up to 1/4") to reduce clogging
• Suitable for recirculated cleaning fluids
• Constructed of corrosion-resistant, FDA-compliant 316L stainless steel

Materials

• 316L Stainless Steel (FDA-compliant)

How It Works

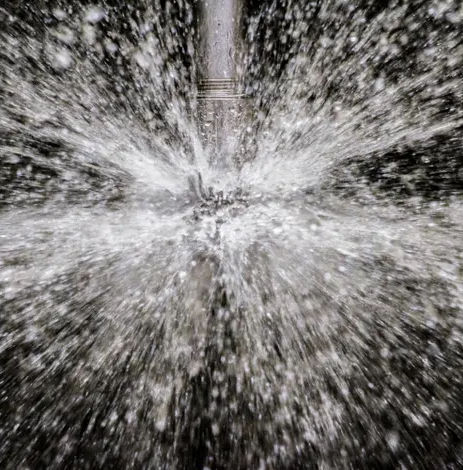

Stationary (static) nozzles have no moving parts. The HydroClaw® geometry provides a sizable free passage and generates heavy jets that are deflected by cups to form a uniform 360° spray, producing thorough rinsing action suitable for light to moderate soils.

Dimensions & Performance (imperial)
Spray Angle: 360°
Models: 6193685, 6193688, 6195965
Inlet Connection options: 3/4 FNPT; 1" Tube Clip-on; 1-1/2" Tube Clip-on
A: 2.38" (all models)
B: 3.59" (6193685), 3.59" (6193688), 4.00" (6195965)
D: (6193685: n/a), 0.75" (6193688), 0.75" (6195965)
E: (6193685: n/a), 0.16" (6193688), 0.16" (6195965)
F: (6193685: n/a), 1.00" (6193688), 1.50" (6195965)
G (Free Passage): 0.25" (all models)
Weight: 15 oz (6193685), 14 oz (6193688), 18 oz (6195965)
Coverage Diameter @ 30 psi: 8' (approx.)

Performance (imperial - Flow Rate GPM)
At 25 psi: 6193685 = 33.4 GPM; 6193688 = 35.7 GPM; 6195965 = 35.7 GPM
At 30 psi: 6193685 = 36.6 GPM; 6193688 = 38.9 GPM; 6195965 = 38.9 GPM
At 35 psi: 6193685 = 39.5 GPM; 6193688 = 42.0 GPM; 6195965 = 42.0 GPM
At 40 psi: 6193685 = 42.0 GPM; 6193688 = 44.8 GPM; 6195965 = 44.8 GPM

Dimensions & Performance (metric)
A: 60.5 mm (all models)
B: 91.2 mm (6193685), 91.2 mm (6193688), 102 mm (6195965)
D: (6193685: n/a), 19.1 mm (6193688), 19.1 mm (6195965)
E: (6193685: n/a), 4.1 mm (6193688), 4.1 mm (6195965)
F: (6193685: n/a), 25.4 mm (6193688), 38.1 mm (6195965)
G (Free Passage): 6.4 mm (all models)
Weight: 416 g (6193685), 391 g (6193688), 504 g (6195965)
Coverage Diameter @ 2 BAR: 2.4 m (approx.)

Performance (metric - Flow Rate LPM)
At 1.5 BAR: 6193685 = 119 LPM; 6193688 = 125 LPM; 6195965 = 125 LPM
At 2.0 BAR: 6193685 = 136 LPM; 6193688 = 145 LPM; 6195965 = 145 LPM
At 2.5 BAR: 6193685 = 152 LPM; 6193688 = 161 LPM; 6195965 = 161 LPM
At 3.0 BAR: 6193685 = 166 LPM; 6193688 = 176 LPM; 6195965 = 176 LPM

Technical specifications

• Brand: BETE
• Commercial name: HydroClaw® (HC)
• Product SKU (site): P6193685
• Material: 316L Stainless Steel (FDA-compliant)
• Spray angle: 360°
• Maximum particle passage: up to 1/4" (6.4 mm) free passage
• Inlet connection options: 3/4 FNPT; 1" Tube Clip-on; 1-1/2" Tube Clip-on
• Design: stationary/static nozzle (no moving parts)
• Suitable for recirculated cleaning fluids
• Coverage diameter: ~8' at 30 psi (~2.4 m at 2 BAR)
• Representative flow rates: see Dimensions & Performance section above (imperial and metric)
• Available site models: 6193685, 6193688, 6195965
