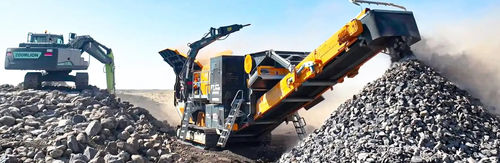

FTJ-11-75 Mobile Jaw Crusher is a tracked, high-capacity unit designed for primary crushing of stone, concrete and construction waste. It integrates feeding, primary crushing, separation and stock handling for on-site primary processing.

Vibrating Feeding Bunker
The vibrating feeding bunker uses vibro motors and steel springs to rapidly deliver loaded material to the crusher. A bolted grizzly screen prevents muddy material entering the crusher; screening sizes are set per user request. Durable structure and A1 quality springs ensure long service life.

Jaw Crusher
Suitable for hard, abrasive materials with high silica content (basalt, granite). The movable jaw reduces material by compressive/elliptical motion against the fixed jaw. Hydraulic adjustment allows quick setting changes to define output particle size. Replaceable wear linings protect the inner body for easier maintenance. Key components include movable pitman, flywheel system and tensioner assembly.

Stock Belts (Folding Type Conveyors)
Folding-type stock conveyors transfer crushed products to stock areas and reduce transport dimensions. Wear-resistant belt elements extend service life. Components include belt traverses, drive drums and coupled motors.

Separator Belt (Magnetic Separator)
Oversized separator belt features a main permanent magnetic block, endless separator belt, drive motor and magnetically isolated steel frame (MBS series) to prevent unwanted metal adherence. The structure provides a 3-pole magnetic field configuration.

Track System
The track system provides mobility with a track width of 500 mm. Tracks are designed for versatile movement and resistance to challenging terrain; designed to meet A1 quality and CE standards.

Automation System
Plant control is PLC-based with on-machine automation panel. The automation manages crusher, stock conveyors and feed hoppers. Optional modules include professional interface, remote control and heat-sensor protection.

Generator / Hybrid System
Integrated generator supplies power for continuous operation. Hybrid configuration allows operation on diesel and/or grid power to mitigate irregular or absent grid supply. Hybrid sizing is selectable per site energy needs to optimize fuel consumption and operational efficiency.

Automatic Lubrication System (Optional)
An optional automatic lubrication system delivers grease to required points during operation and maintenance, ensuring even distribution and reducing downtime and lubricant usage.

Hydraulic System
Hydraulic controls operate feeding bunker covers and stock conveyors without manual effort using fast on-off hydraulic arms.

• Advantages: operates without manpower
• Provides rapid mobility to related parts
• Fast and practical solution

Shipping Dimensions (Metric)
Model | L | W | H
FTJ-11-75 | 15650 mm | 3365 mm | 3660 mm

Shipping Dimensions (Imperial)
Model | L | W | H
FTJ-11-75 | 51' 4" | 11' | 12'

Notes on Components and Design
The unit comprises: vibrating feeding bunker with grizzly screen and vibro motors; jaw crusher with hydraulic gap adjustment and replaceable liners; folding-type stock conveyors with drive drums; magnetic separator belt with isolated steel frame; 500 mm track system for mobility; PLC-based automation with optional heat sensor and remote control; generator hybrid arrangement; optional automatic lubrication system; hydraulic control arms and hydraulic bunker covers.

Characteristics / Technical specifications

• Model: FTJ-11-75
• Application: Primary crushing of stone, concrete and construction waste
• Feeding: Vibrating feeding bunker with vibro motors and steel springs; bolted grizzly screen (screening sizes per user request)
• Crusher type: Jaw crusher with movable pitman, flywheel system and tensioner assembly
• Jaw adjustment: Hydraulic adjustment system for desired output size
• Protection: Replaceable protective linings inside the jaw crusher
• Stock handling: Folding type stock conveyor belts with wear-resistant elements, belt traverses and drive drums
• Separator: MBS series permanent magnetic separator with endless belt and magnetically isolated steel frame; 3-pole magnetic field
• Track system: 500 mm track width; designed for versatile mobility and tough terrain
• Automation: PLC-based full automation, professional interface, remote control; optional heat sensor protection
• Power: Generator with hybrid operation (diesel + electric grid) — optional capacity per site needs; low fuel consumption / high efficiency
• Maintenance: Optional automatic lubrication system for optimal grease distribution and reduced maintenance time
• Hydraulics: Hydraulic control arms for bunker covers and stock belts (fast, labor-free operation)
• Shipping dimensions (L x W x H): 15650 mm x 3365 mm x 3660 mm
