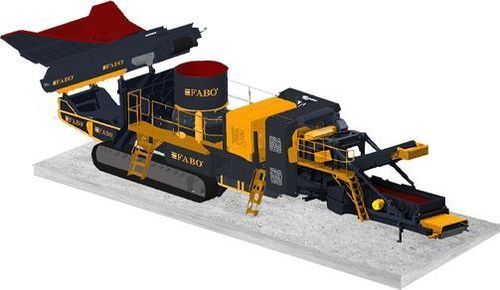

Cone crusher FTC-300-s

mobilediesel enginehigh-capacity

Overview
The FTC-300-s mobile cone crushing and screening plant is a tracked aggregate production solution integrating feeding, crushing, screening and stock conveying systems. Designed for on-site high-capacity operations, the unit supports hybrid power options and full automation to maintain consistent throughput and efficient site logistics.

Belt Feeder
The belt feeder transfers material to the crusher with integrated motor protection and automation to regulate feed rate and prevent overload.

• Motor protection against overheating
• Feed intensity controlled by plant automation
• Two-step automation logic to adjust bunker transfer based on crusher amperage

Cone Crusher
Designed for high rotor speed and strong gear transmission to deliver the plant's rated capacity. Power transmits via pinion shaft and hub to crush material to target sizes.

• Reference model used in system: CC-300
• Feeding opening (cone): 215 mm
• Pinion shaft, hub and gears for reliable power transmission

Vibrating Screen
Robust vibrating screen separates products by size and feeds stock conveyors; screening dimensions can be adapted to project requirements.

• Standard screen size: 1500 x 4200 mm
• Durable steel springs for continuous operation
• Quick-change screen wires for fast maintenance

Stock Belts & Separator Belt
Folding-type stock conveyors reduce transport footprint. Separator belts include a permanent magnet block and endless belt to isolate metal contaminants.

• Folding conveyors for compact transport
• Belt traverses, drive drums and coupled motors
• Optional 3-pole magnetic separator

Track System
Tracked chassis provides mobility on challenging terrain; track width specified at 500 mm. Systems are engineered to meet quality and CE standards.

Automation System
PLC-based automation manages crusher, conveyors and feeders with professional interface and remote control options.

• PLC control
• Professional user interface
• Remote control and optional heat-sensor protection

Generator (Hybrid Technology)
Hybrid generator enables operation on diesel and/or grid power for sites with irregular grid supply. Hybrid capacity is configured to site needs.

• Diesel + electric hybrid operation
• Low fuel consumption options
• Designed for continuous, efficient operation

Automatic Lubrication System (Optional)
Optional automatic lubrication distributes grease to key components, reducing maintenance time and ensuring uniform lubrication cycles.

Hydraulic System
Hydraulic actuators operate bunker covers and conveyors for fast, hands-free adjustments.

• Hydraulic control arms
• Hydraulic bunker covers and conveyor drives
• Operates without manual handling

Crushing Chamber - Maximum Feed (table)
Crushing Chamber | Maximum Feed | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41 | 44 | 48
EC | 215 | - | - | - | 85 | 92-207 | 99-271 | 105-290 | 112-308 | 121-333 | 128-351 | 134-370 | 141-388 | 148-333 | 155-309 | 167-245
EF | 35 | 43-117 | 44-121 | 46-125 | 49-134 | 52-129 | 56-112 | 60-91 | 65-81 | - | - | - | - | - | - | -

Components & Key Data

• Production Capacity: 220-340 TPH
• Crusher Type: Cone Crusher (CC-300 referenced)
• Power: 500 kVA (generator / hybrid option)
• Vibrating Screen Size: 1500 x 4200 mm
• Approx. Weight: 51,500 kg
• Feeding Opening (cone): 215 mm

Technical specifications

• Production Capacity: 220-340 TPH
• Crusher Type: Cone Crusher (CC-300 referenced)
• Power: 500 kVA (generator / hybrid option)
• Vibrating Screen: 1500 x 4200 mm
• Machine Weight: 51,500 kg
• Feeding Opening (cone): 215 mm
• Track Width: 500 mm
• Automation: PLC-based interface, remote control, optional heat sensor protection
• Optional Systems: Automatic lubrication, hybrid generator
• Key Components: Belt feeder with motor protection, folding stock belts, magnetic separator (permanent magnet), hydraulic bunker system
