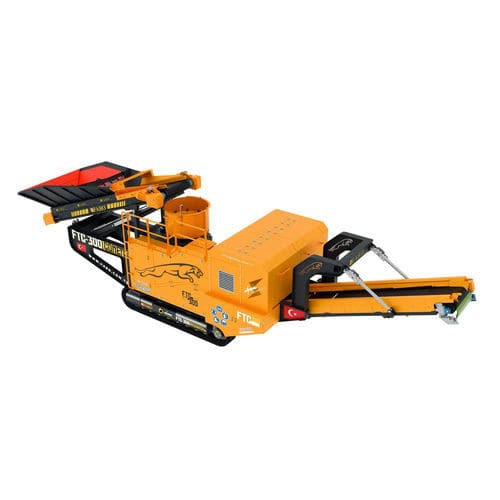

Cone crusher FTC-300

mobilediesel enginecompact

Overview
FTC-300 Mobile Cone Crusher delivers powerful tracked crushing, high capacity and reliable performance for quarrying, mining and aggregate projects.

Belt Feeder
The Belt Feeder quickly sends loaded products to the crusher for the crushing process. The belt feeder is driven by 2 motors, providing mobility and includes a motor protection system to prevent overheating-related malfunctions. The working intensity of the Belt Feeder and the crusher is coupled with the automation system.

Automation interaction
Step 1: If the density of the crushed product in the crusher is high, the crusher amperage rises; the automation system detects this rise and stops bunker transfer to prevent accumulation in the crusher feed chute and excessive wear.

Step 2: If the density of the crushed product in the crusher is low, the crusher amperage decreases; the automation system detects this decrease and increases bunker transfer so the feeding hopper delivers products to the crusher faster, keeping production capacity at maximum level.

Cone Crusher
The power from the engine is transferred to the gear shaft and sent to the hub with gears. The core and concave inside the crusher crush and break stones into pieces. The robust rotor speed and strong gear structure enable high production and enable the FTC-300 Mobile Crusher to operate at maximum capacity.

Crushing Chamber (table)
Header: Crushing Chamber | Maximum Feed | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41 | 44 | 48
EC: 215 | - | - | - | 85 | 92-207 | 99-271 | 105-290 | 112-308 | 121-333 | 128-351 | 134-370 | 141-388 | 148-333 | 155-309 | 167-245
EF: 35 | 43-117 | 44-121 | 46-125 | 49-134 | 52-129 | 56-112 | 60-91 | 65-81 | (no data) | (no data) | (no data) | (no data) | (no data) | (no data) | (no data)

Key Machine Data (table)
Production Capacity: 220-340 TPH
Crusher Type: Cone Crusher
Power: 500 kVA
Weight: 42.000 kg

Stock Belts
FABO folding-type stock conveyor belts quickly send crushed products to the stock area. Foldable structure minimizes machine dimensions. Wear-resistant belt tires provide long service life.

Track System
The track system allows machine mobility; track width is 500 mm. Tracks are designed to resist challenging terrain. The system supports versatile mobility and compliance with A1 Quality and CE standards.

Automation System
The tracked crushing plant is controlled by a full automation system (PLC). The machine operating mode is adjusted via the on-machine automation panel. Equipment such as crusher, stock conveyors, and feed hoppers are controlled by the automation system. The system includes a professional interface, PLC control, remote control capability and optional heat sensor protection.

Generator & Hybrid Technology
The generator supplies required power continuously. Hybrid technology enables operation with diesel fuel and/or electric grid power. The hybrid system is used where grid energy is irregular or unavailable; it prevents malfunctions due to irregular electricity flow and can be disabled when grid energy is available. Hybrid system capacity can be optionally sized according to energy needs.

Automatic Lubrication System (Optional)
The automatic lubrication system delivers required grease to components during operation and maintenance, ensuring even distribution and minimizing manual labor. It completes lubrication within seconds, uses optimal oil amounts, reduces maintenance costs, and provides flawless lubrication across components.

Hydraulic System
The Hydraulic System operates feeding bunker covers and stock belts without manual effort. It uses hydraulic control arms to perform fast on-off operations.

• Works without the need for manpower
• Provides rapid mobility to related parts
• Fast and practical solution

Technical specifications

• Model / Commercial designation: FTC-300
• Manufacturer / Brand: FABO
• Production capacity: 220-340 TPH
• Crusher type: Cone Crusher (CC-300 series components used)
• Power supply: 500 kVA (generator / hybrid-ready)
• Operating power options: Diesel generator and electric grid (hybrid technology)
• Machine weight: 42,000 kg
• Feeding opening (Cone Crusher): 215 mm
• Track width: 500 mm
• Automation: PLC-based professional interface with remote control and optional heat sensor protection
• Optional systems: Automatic lubrication system
• Crushing chamber detailed ranges: see Crushing Chamber table block above (EC and EF values per crusher setting)
