Vertical-shaft impact crusher FTV-90-s

mobilediesel enginesand production

Overview

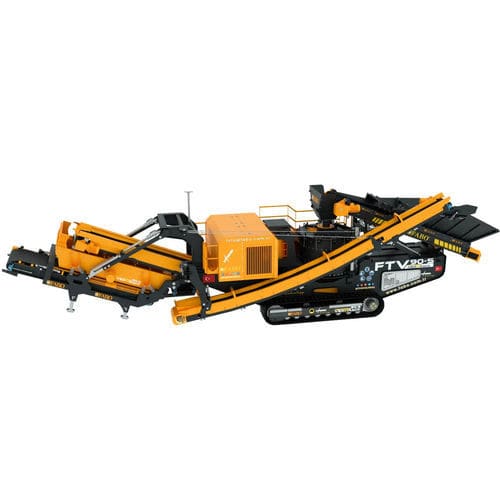

The FTV-90-s mobile Vertical Shaft Impact (VSI) crushing and screening plant provides integrated fine crushing and grading on a track-mounted chassis. Designed for high-rate sand production in the 0–5 mm range and for processing hard, abrasive rocks such as basalt and granite, the plant integrates feeding, crushing, screening and stock conveying with PLC automation and optional hybrid power and lubrication systems.

Belt Feeder

• The belt feeder transfers loaded material to the crusher for steady feed rate.
• Equipped with two drive motors and motor protection to prevent overheating.
• Feeder and crusher working intensity are coupled to the automation system for synchronized operation.
• Automation logic: high crusher amperage halts bunker feed to avoid accumulation and wear; low amperage increases feed to maximize capacity.

Vertical Shaft Crusher (VSI)

• Main machine for fine sand production with high efficiency in the 0–5 mm output range.
• Crushing by high-speed rotor throwing material against protective linings, suitable for hard and abrasive feedstock.
• Rotor diameter: Ø 900 mm (VSI-900 rotor).
• Maximum feeding size: 50 mm.
• Protection linings fully cover the crusher interior to reduce body wear; linings are bolted for quick replacement and maintenance.
• Designed for high throughput and simplified service access.

Vibrating Screen

• Separates crushed material to specified product sizes and routes fractions to stock conveyors.
• Typical screening surface example: 1500 x 3200 mm (screen area configurable per project).
• Durable steel springs allow continuous operation under severe conditions.
• Screen meshes/wires are replaceable quickly to minimize downtime.

Stock Belts / Folding Type Conveyors

• Folding stock conveyors transport finished products to stockpiles and reduce transport footprint when stowed.
• Wear-resistant belt materials and reinforced components for long service life.
• Key features: belt travel adjustment, drive drums and coupled motors.

Separator Belt (Magnetic Separator)

• Oversized conveyor magnetic separator includes permanent magnet block, endless separator belt, drive motor and magnetically isolated steel frame.
• MBS-series permanent magnet design reduces metal adhesion to the frame.
• Optional 3-pole magnetic field available for enhanced separation performance.

Track System

• Tracked mobility with 500 mm wide tracks for robust movement over rough terrain.
• Two-stage travel speed adjustment for controlled positioning and relocation.

Automation System

• PLC-based control panel mounted on the machine for full automation of crusher, feeders and conveyors.
• System optimizes feed and conveying to maximize efficiency and protect equipment.
• Professional HMI, remote-control capability and optional thermal sensor protection are available.

Generator & Hybrid System

• Onboard generator provides uninterrupted power; hybrid option allows operation on diesel or grid electricity.
• Hybrid mode mitigates unstable grid supply and can be disabled to use site power when available.

Automatic Lubrication System (Optional)

• Timed, even grease distribution to bearings and components requiring lubrication.
• Reduces manual maintenance interventions and optimizes lubricant usage to lower operating costs.

Hydraulic System

• Hydraulic actuators operate bunker covers and stock conveyors to eliminate manual handling.
• Fast and practical operations enable quick folding/unfolding and machine mobility.
• Advantages: reduced manual labor, rapid deployment and practical site operation.

Design & Maintenance Features

• Bolted protection linings for rapid replacement.
• Accessible design for quick maintenance of rotor, linings and screening components.

Shipping Dimensions / Technical Drawings
Shipping dimensions and detailed technical drawings are available for the model in metric and imperial variants.

Technical Specifications

• Model: FTV-90-s
• Crusher type: Vertical Shaft Impact (VSI), VSI-900 rotor (Ø 900 mm)
• Maximum feeding size: 50 mm
• Main product range: 0–5 mm sand production (high rate)
• Vibrating screen example size: 1500 x 3200 mm (configurable)
• Belt feeder: 2 motors, motor protection, automation-coupled control
• Stock conveyor belts: folding type, wear-resistant belts
• Separator belt: permanent magnet (MBS series), optional 3-pole magnetic field
• Track width: 500 mm tracks (robust mobility)
• Automation: PLC control, remote control, optional thermal sensor protection
• Power options: onboard generator with hybrid diesel/electric capability (hybrid optional)
• Lubrication: automatic lubrication system (optional)
• Hydraulics: hydraulic control arms for bunker covers and conveyors
