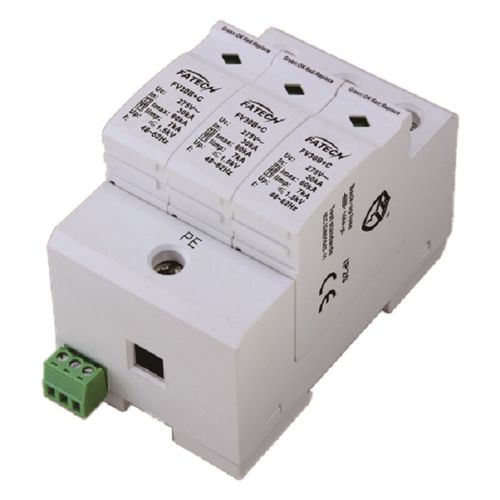

Type 1 surge protector FV30B+C/3-xxx(S) seriesremote signalingfor power suppliesplug-in
Add to favorites
Compare this product
Characteristics
- Type
- type 1
- Applications
- for power supplies, remote signaling
- Other characteristics
- MOV, 3-pole, N-PE, low-voltage, AC, DIN rail, plug-in
- Voltage
Max.: 440 V
Min.: 110 V
- Primary current
30,000 A, 60,000 A
- Open circuit voltage
0.9 kV, 1.5 kV, 1.8 kV, 2 kV, 2.2 kV
Description
-Clss B+C/I+II Surge protector onsisting of 3 base part and MOV plug-in protection modules.
-High energy MOV inside.
-Low residual voltage and quick response.
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L1, L2, L3-PE, N-PE.
