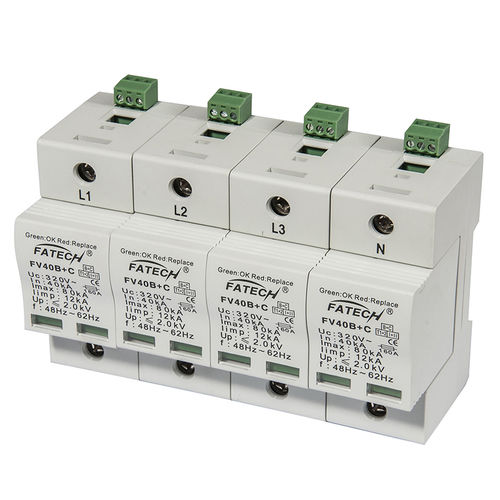

Type 1 surge arrester FV40B+C/4-xxx S seriestype 2remote signalingfor power supplies
Add to favorites
Compare this product
Characteristics
- Type
- type 2, type 1
- Applications
- for power supplies, remote signaling
- Other characteristics
- with fault indication, MOV, N-PE, hybrid, low-voltage, AC, three-phase, DIN rail
- Voltage
Max.: 400 V
Min.: 110 V
- Primary current
40,000 A, 80,000 A
Description
- Class I+II surge arresters.
- 4P, 3 phases
- Imax 80kA, In 40kA, Iimp 12kA.
- High energy MOV and GDT hybrid unit inside.
- Low residual voltage and quick response.
- Reliable control thanks to Thermo Dynamic Control disconnector.
- With remote signaling contact for control device.
- Protection mode: L1-PE, L2-PE, L3-PE, N-PE.
