- FATECH ELECTRONIC (FOSHAN) CO., LTD

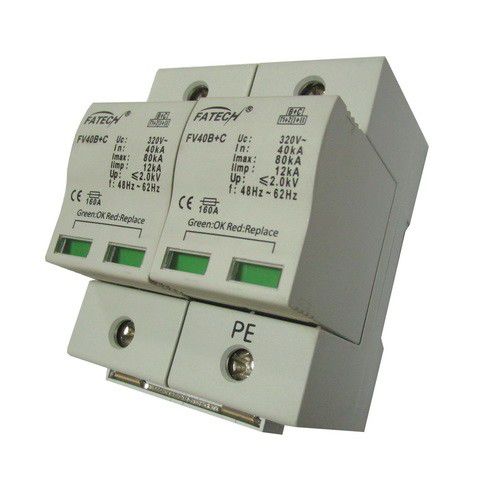

Type 1 surge arrester FV40B+C/2-xxx S seriestype 2remote signalingfor power supplies
Add to favorites
Compare this product
Characteristics
- Type
- type 2, type 1
- Applications
- for power supplies, remote signaling
- Other characteristics
- with fault indication, MOV, N-PE, 2-pole, low-voltage, AC, DIN rail, plug-in
- Voltage
Max.: 400 V
Min.: 110 V
- Primary current
40,000 A, 80,000 A
Description
-B+C surgeprotective device onsisting of a base part and MOV plug-in protection modules.
-High energy MOV inside.
-Low residual voltage and quick response.
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L-PE, N-PE.
