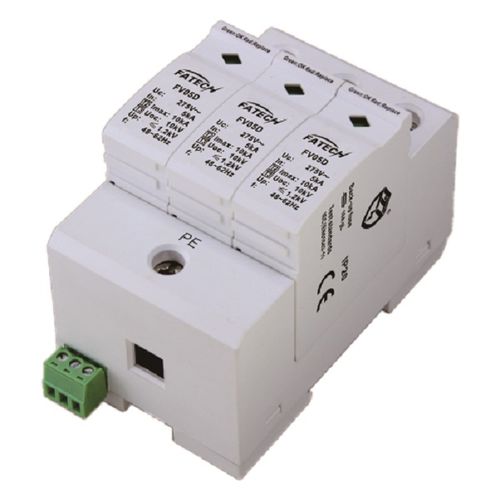

Type 2 surge arrester FV05D/3-xxx S series
type 3class IIremote signaling

Type 2 surge arrester - FV05D/3-xxx S series - FATECH ELECTRONIC (FOSHAN) CO., LTD - type 3 / class II / remote signaling
Type 2 surge arrester - FV05D/3-xxx S series - FATECH ELECTRONIC (FOSHAN) CO., LTD - type 3 / class II / remote signaling
Add to favorites
Compare this product

Characteristics

Type
type 2, type 3, class II
Applications
for power supplies, remote signaling
Other characteristics
with fault indication, MOV, low-voltage, AC, three-phase, DIN rail, plug-in
Voltage

220 V, 380 V

Primary current

5,000 A, 10,000 A

Description

-Class II / Type 2 3 poles type 3 surge protector. -Imax 20kA, In 10kA, Uc 275, 320, 385, 440V. -Consisting of a base part and3 MOV plug-in protection modules. -For using in the lightning protection zones concept at boundary 2-3. -The core parts are metal oxide vristor components with high discharge capacity. -Low residual voltage and quick response -Reliable control thanks to Thermo Dynamic Control disconnector. -With remote signaling contact for control device. -Fault indication via red mark in the inspection window. -Protection mode: L1, L2, L3-PE
