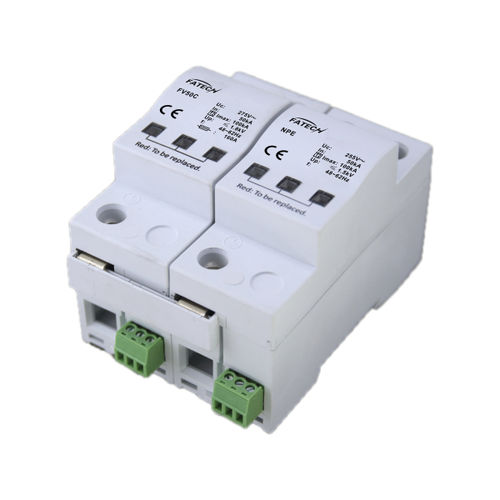

Type 2 surge arrester FV50C/1+NPE-xxx S seriesremote signalingfor power suppliesAC
Add to favorites
Compare this product
Characteristics
- Type
- type 2
- Applications
- for power supplies, remote signaling
- Other characteristics
- N-PE, low-voltage, AC, DIN rail
- Voltage
Min.: 110 V
Max.: 440 V
- Primary current
50,000 A, 100,000 A
- Open circuit voltage
1.6 kV, 1.8 kV, 2.2 kV, 2.5 kV, 2.8 kV
Description
-Class C Low Voltage Surge Arrester.
-Consisting of a base part and2 MOV pluggable modules.
-For using in the lightning protection zones concept at boundary 1-2.
-The core parts are metal oxide vristor components with high discharge capacity.
-Low residual voltage and quick response
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L-PE, N-PE.
