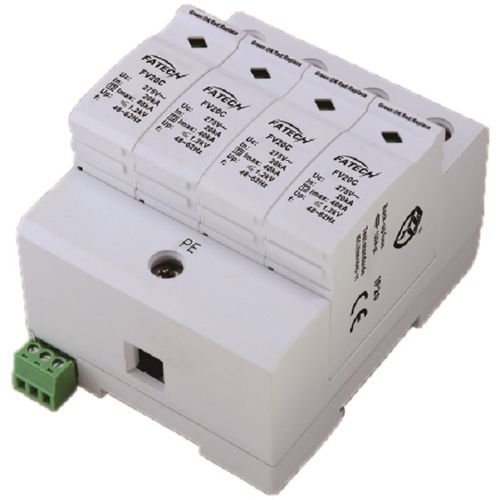

Type 2 surge protector FV20C/4-xxx S series
class IIremote signalingfor power supplies

Type 2 surge protector - FV20C/4-xxx S series - FATECH ELECTRONIC (FOSHAN) CO., LTD - class II / remote signaling / for power supplies
Type 2 surge protector - FV20C/4-xxx S series - FATECH ELECTRONIC (FOSHAN) CO., LTD - class II / remote signaling / for power supplies
Add to favorites
Compare this product

Characteristics

Type
type 2, class II
Applications
for power supplies, remote signaling
Other characteristics
MOV, AC, three-phase, DIN rail, plug-in
Voltage

Max.: 440 V

Min.: 110 V

Primary current

20,000 A, 40,000 A

Open circuit voltage

0.7 kV, 1.2 kV, 1.5 kV, 1.8 kV, 2 kV

Description

-Class II / Type 2 surge protection devices. -Consisting of a base part and4 MOV plug-in protection modules. -For using in the lightning protection zones concept at boundary 1-2. -The core parts are metal oxide vristor components with high discharge capacity. -Low residual voltage and quick response -Reliable control thanks to Thermo Dynamic Control disconnector. -With remote signaling contact for control device. -Fault indication via red mark in the inspection window. -Protection mode: L1, L2, L3, L4-PE
