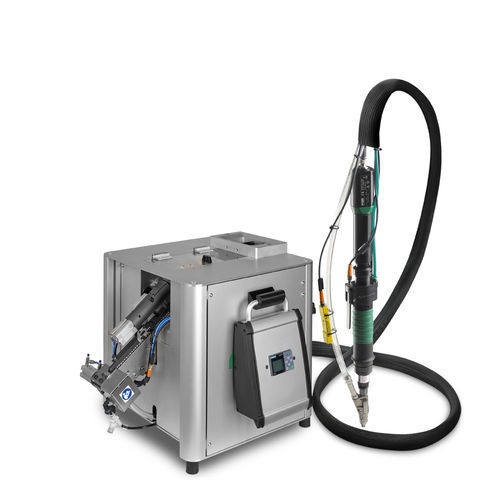

Corded electric screwdriver CA - EasyDriver ED S - Silent Feeder

straightwith automatic feedsemi-automatic

Handheld tightening system with automatic screw feeding:
• Eliminates the manual steps of screw pick and place on the bit/piece
• Ensures the continuous supply of screws which are «shot» automatically
• Reduces tightening times (–35%)
• Interconnects with the factory system (INDUSTRY 4.0)
• Ensures less operator fatigue

The associated brushless electric screwdriver can have different tightening process control systems:

• torque control with mechanical clutch
• torque/angle/time control and monitoring with integrated transducer and resolver
• torque/angle/time control and monitoring through current absorption and integrated sensors

These latest technologies allow assemblies with different parameters of torque, speed, etc.: the same tightening system can tighten the same screw on different joints simply by adapting the programs on the coupled unit.

Available 2 tightening devices:

• FORWARD BIT STROKE: patented by Fiam, allows the bit to advance automatically and reduces operator fatigue, keeps the screw tip in sight. During tightening phase, the screwdriver head does not touch the component surfaces, thereby avoiding any friction and damage

• TELESCOPIC DEVICE: allows to reach tightening points in inaccessible spaces or at great depths and therefore inside holes thanks to its telescopic stroke of 40, 60 and 100 mm.
The 2 built-in sensors make it possible to work with two tightening modes, with:
–torque control
–tightening height control.

SCREWS FEEDER ED S – Silent Feeder
has a segment conveyor inside the tank that loads, aligns and sends the screws to an inclined accumulator, exploiting the principle of gravity. The absence of vibration therefore guarantees maximum silence as well as preserving the characteristics of the screws and ensuring high quality assembly.
For screws L max 25 mm — tank capacity 2 litres
Has integrated:
 Portable PLC, extremely convenient for remotely managing tightening cycles.
 Connectivity: Fieldbus export (PROFINET / MODBUS TCP / ETHERNET/IP)
 Real time statistics and ability to set main machine parameters remotely; interface provided in English with dynamic flowcharts and graphs
 EDMI (EasyDriver Machine Interface): web server interface in the feeder for remote connection via PC, smartphone or tablet
• Over load sensor to ensure correct screw quantity on linear rail
• High speed screw selector/denester for closed chamber feeding
• Pneumo electric components (Festo)
• Low level sensor to indicate bowl reloading
• Analog line pressure switch to monitor incoming air pressure
• Stainless steel structure with transparent cover and removable side panels for maintenance
• Integrated filter, regulator and lubricator with gauge; tube bundle for hoses and cables: 5 m
