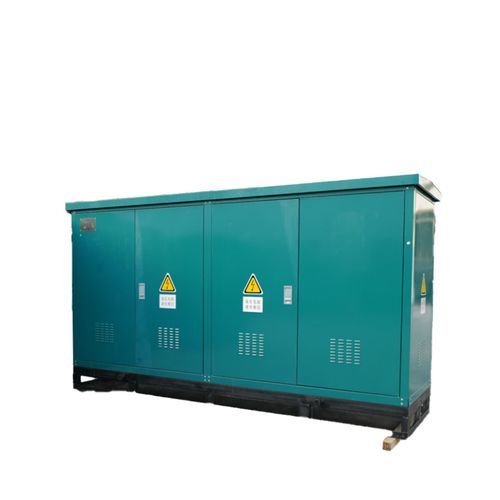

Medium-voltage ring main unit XGN-12
SF6 gas-insulatedmetal-cladpower distribution

Medium-voltage ring main unit - XGN-12 - Ficont Industry (Beijing) Co., Ltd. - SF6 gas-insulated / metal-clad / power distribution
Medium-voltage ring main unit - XGN-12 - Ficont Industry (Beijing) Co., Ltd. - SF6 gas-insulated / metal-clad / power distribution
Add to favorites
Compare this product

Characteristics

Electrical characteristics
medium-voltage
Configuration
SF6 gas-insulated, metal-clad
Applications
power distribution
Other characteristics
modular

Description

Key features
  • Modular five-compartment design: switch-busbar compartment, mechanism compartment, fuse compartment, cable compartment and pressure relief compartment for a compact modular layout.
  • Top-mounted through-type busbar structure: optimizes electrical connections across the cabinet.
  • Top-mounted SF6 load switch: delivers high insulation performance.
  • High-capacity cable compartment: supports bottom cable outlet connections for non-shielded cable terminations.
  • Spring-operated mechanism with mechanical interlock: ensures reliable operation and operational safety.


Specifications
XGN-12 SF6 gas-insulated metal-enclosed ring main unit (RMU) switchgear

Technical specifications
  • Model: XGN-12
  • Product type: SF6 gas-insulated metal-enclosed ring main unit (RMU) switchgear
  • Insulation medium: SF6 gas
  • Enclosure: Metal-enclosed
  • Compartments: switch-busbar compartment; mechanism compartment; fuse compartment; cable compartment; pressure relief compartment
  • Busbar layout: top-mounted through-type busbar structure
  • Switch type: SF6 load switch (top-mounted)
  • Cable entry: bottom cable outlet support for non-shielded cable terminations
  • Operating mechanism: spring-operated mechanism with mechanical interlock
  • Design emphasis: compact modular structure, high insulation performance, operational safety
